Name: Abrasive Cloth Flap Wheel With Shank
Brand: Wenling Keying Abrasives Co., Ltd.

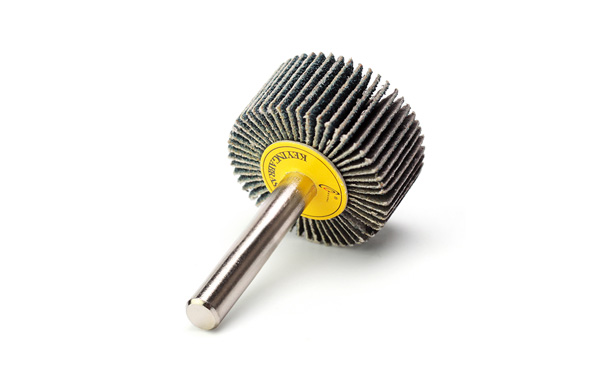

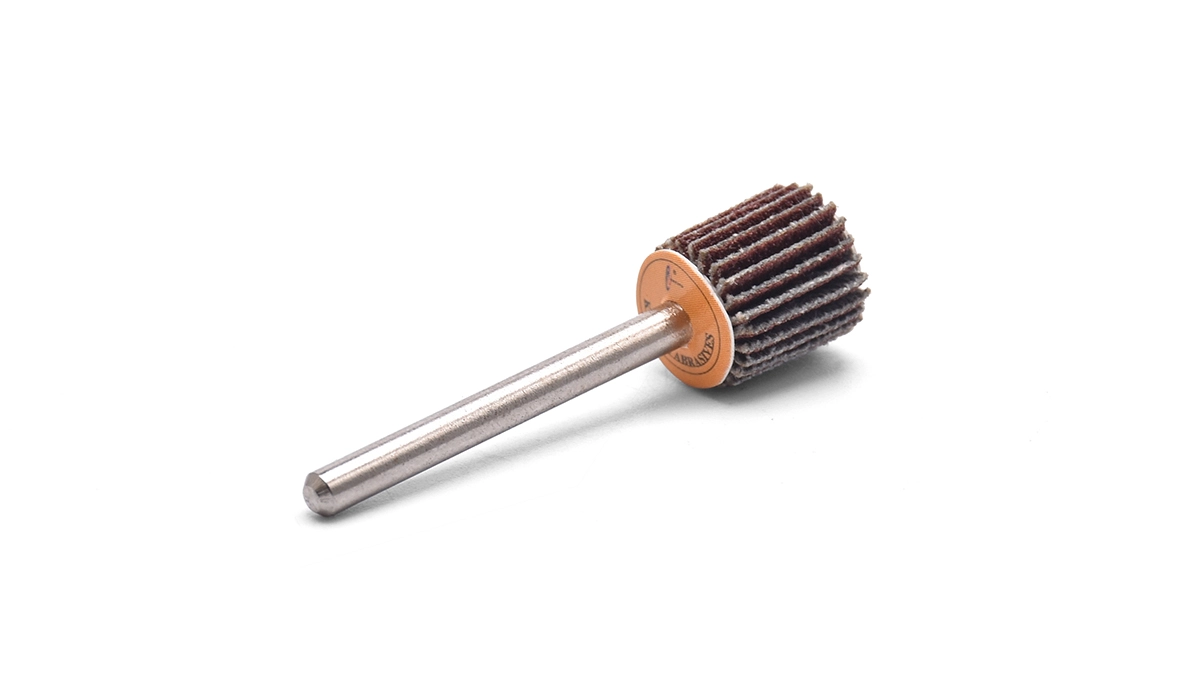

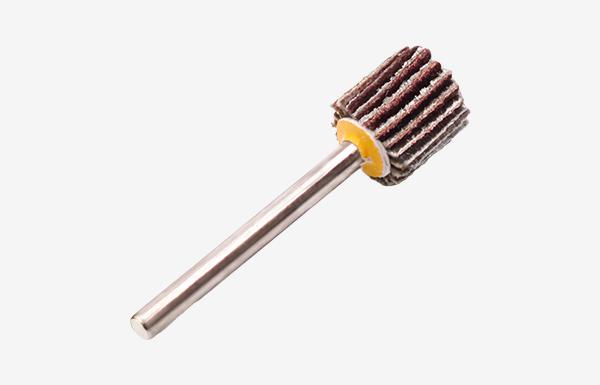

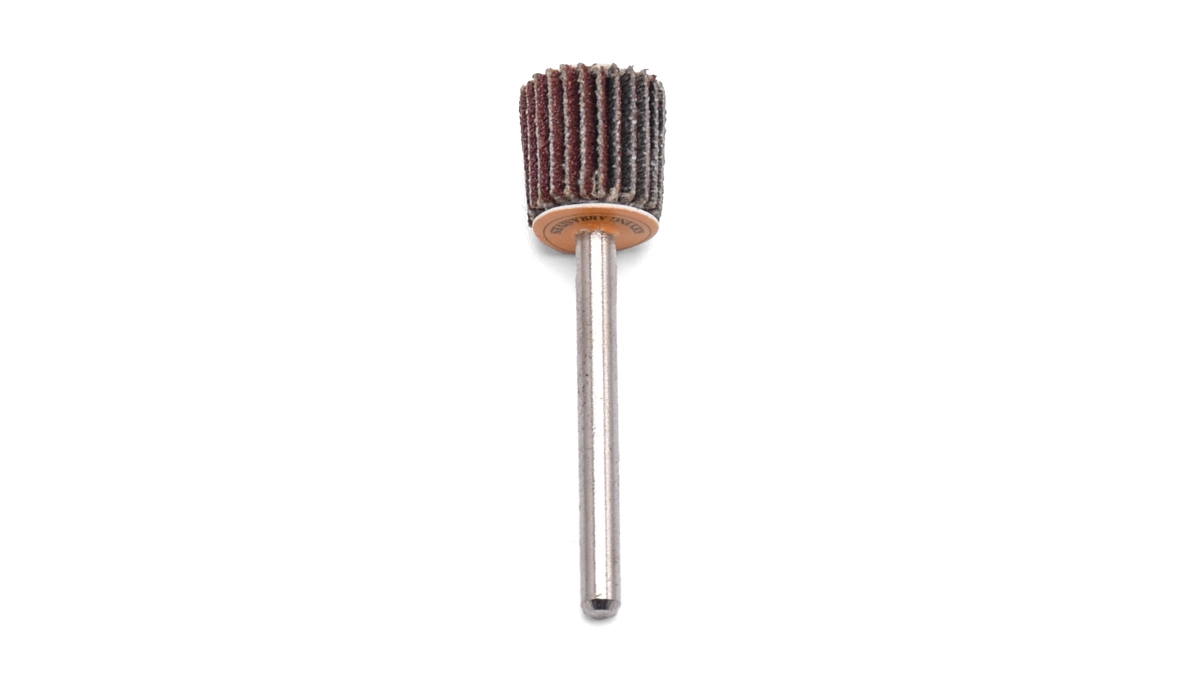

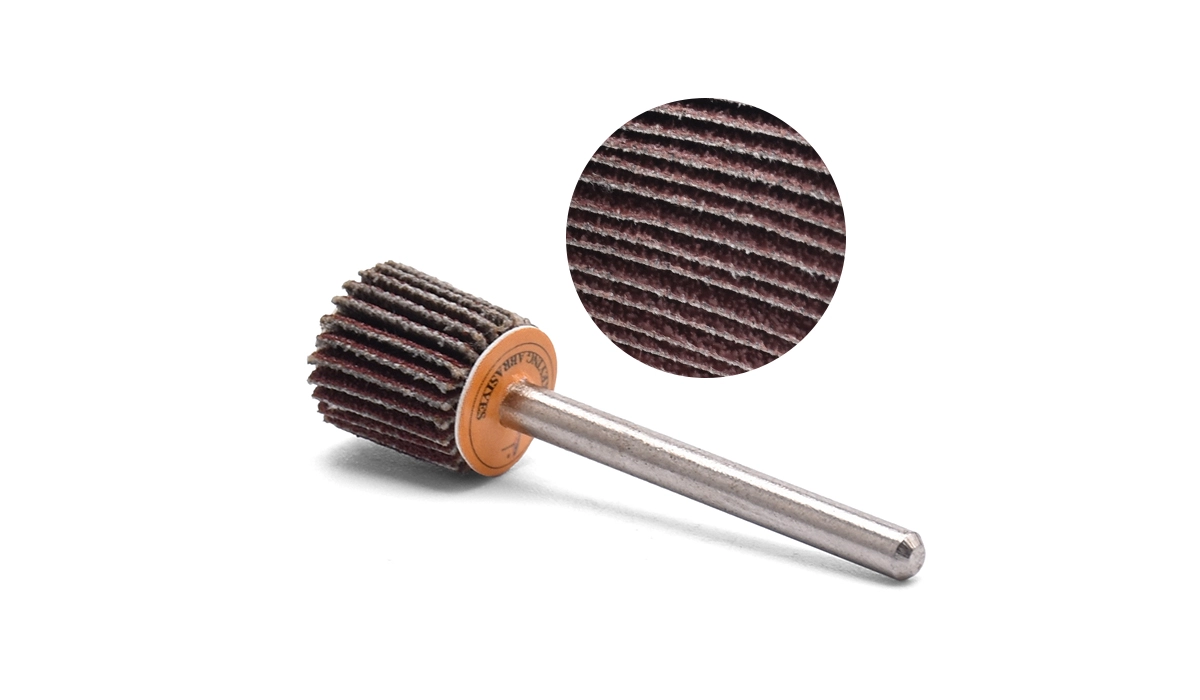

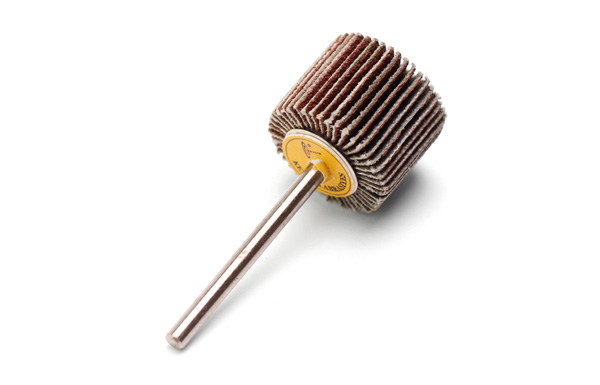

Abrasive Cloth Flap Wheel With Shank



Mounted flap wheels are abrasive tools composed of multiple radial abrasive flaps attached to a central core or shaft. Their flexible size range and varying heights allow them to conform to the contours of different workpieces, ensuring efficient grinding and polishing.

Grit Size: 40#, 60#, 80#, 100#, 120#, 150#, 180#,240#, 320#, 400#, 600#

Maximium Rotating Speed：38000 rpm

 Contact us

Call us +8615067699991

Specifications Of Abrasive Cloth Flap Wheel with Shank

Application	Non-hardened, non-heat-treated steels: Steels, carbon steels. tool steels,non-alloyed steel, copper, zinc, hardaluminum alloys, bronze, titanium; highly suit for hardened heat-treated steels: tool steels, tempering steels. Alloyed steels, cast steel;	Brand	Keying	Code
Diameter	10mm-100mm	Origin	Made in China	Grain Type	Zirconia
Grit	P40 P60 P80 P100 P120 P240 P320 P400 P600	Industry	Fabrication	Backing	Fiberglass, plastic, 77mm plastic
Maximum RPM	38000	Minimum Order Quantity	500pcs	Compatible Tool	High powered angle grinders

Table Of Abrasive Cloth Flap Wheel with Shank Size and RPM Chart

Abrasive Grit Formula	Grit	Shape Type	Dia	Height	Dia of Shank	OPT RPM
Aluminum Oxide	P40 P60 P80 P100 P120 P240 P320 P400 P600	Cylinder	10mm	10mm-15mm	3mm	38000
			15mm	10-15mm	3mm	38000
			15mm	5mm	3mm	38000
			20mm	5-10mm	3mm	19000
			20mm	25-30mm	3mm	25000
			20mm	5-20mm	6mm	19000
Silicon Carbide	P240 P400 P600 P800 P1000 P1200		20mm	25-30mm	6mm	19000
			25mm	5-20mm	3mm	15000
			25mm	25-30mm	3mm	15000
			25mm	5-20mm	6mm	15000
			25mm	25-30mm	6mm	15000
			30mm	3-8mm	6mm	12000
Ceramic and AO Combined	P40 P80 P120		30mm	10-40mm	6mm	12000
			40mm	3-10mm	6mm	9600
			40mm	15-40mm	6mm	12000
			50mm	5-30mm	6mm	9600
			50mm	35-60mm	6mm	7000
Ceramic and AO Combined	P60 P80 P120		60mm	5-10mm	6mm	6300
				15-30mm	6mm	6300
				35-60mm	6mm	6300
			70mm	5-10mm	6mm	4800
				15-30mm	6mm	6300
Zirconia Alumina	P60 P80			35-60mm	6mm	6300
			75mm	5-10mm	6mm	4800
				15-30mm	6mm	4800
				35-60mm	6mm	4800
			80mm	5-15mm	6mm	4800
			80mm	20-60mm	6mm	4800
			100mm	10-60mm	6mm	4800

Features Of Abrasive Cloth Flap Wheel with Shank

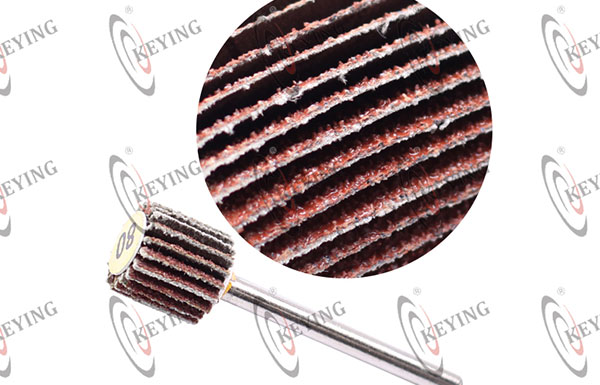

Mounted flap wheels use high-quality domestic and imported abrasive cloth, ensuring excellent performance and durability,providing strong grinding force, precise concentricity, and a long service life for efficient material processing.
Widely applied in casting, hardware, metal accessories, auto parts, aerospace, transportation, and shipbuilding industries.
Suitable for processing various materials, including metal, non-ferrous metals, rare metals, aluminum alloys, iron, plastic, and plastic cement.
Ideal for multiple applications such as rust removal, deburring, grinding, polishing, cleaning, and finishing.

Abrasive Cloth Flap Wheel with Shank Applicable Industries

Applicable Industries

Metalworking
Woodworking
Plastics
Glass
Stone Processing
Automotive Industry
Aerospace Industry

Application Purpose

Trimming uneven surface
Grinding furniture
Clean up welds
Stripping of old layers of paint
Deburring and Levelling

Safety Instructions of Abrasive Cloth Flap Wheel with Shank

How To Use Abrasive Cloth Flap Wheel with Shank

Instructions:

Instructions Of Abrasive Cloth Flap Wheel With Shank

Please try to choose an operation indoors environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a gppd syocl removal rate, quality of surface, and thermal loading on the workpiece, the best performance would with a recommended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
