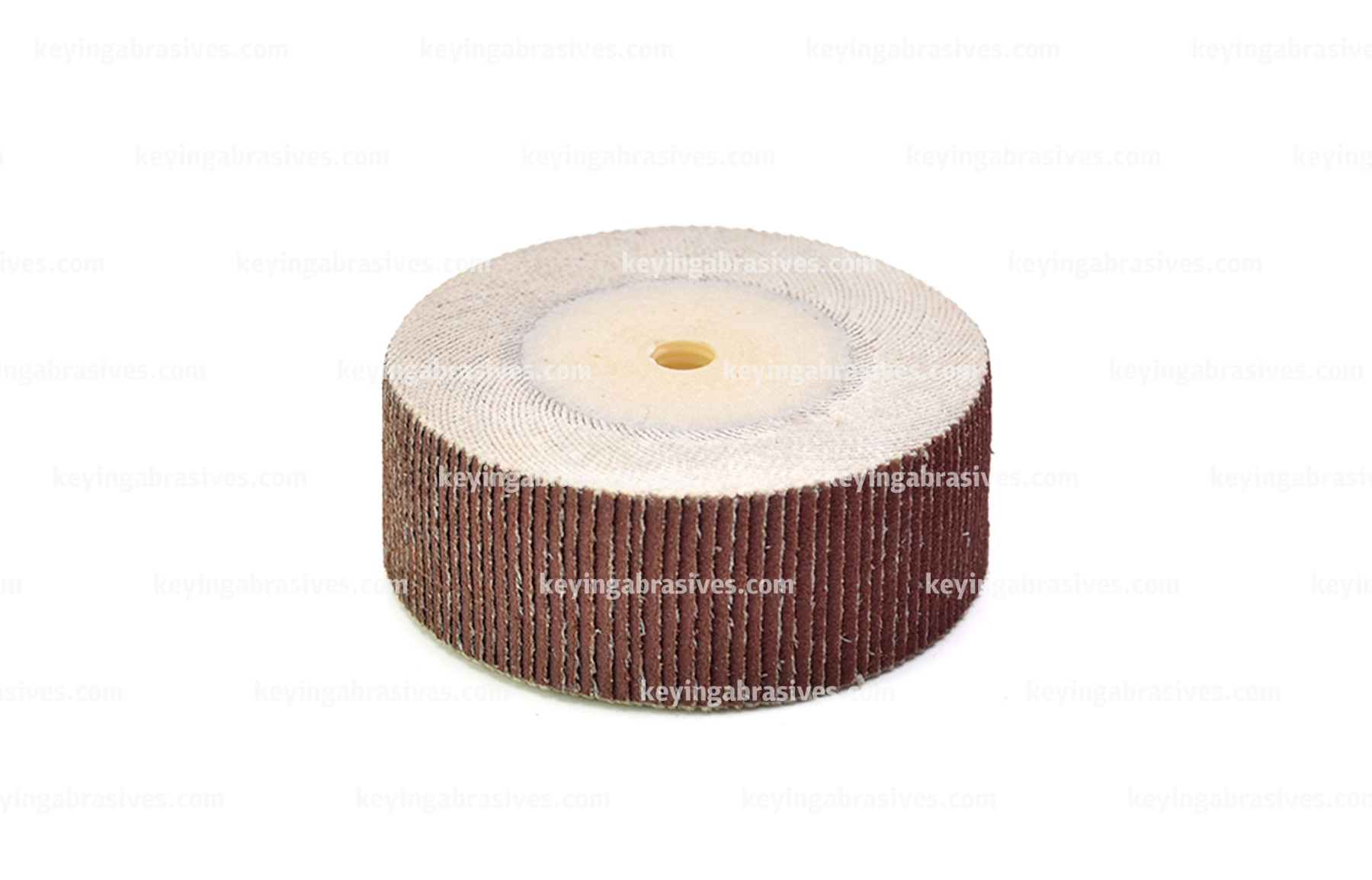

KEYING Miniature Unmounted Flap Wheels are characterized by high elasticity, high performance, strong grinding force. Our Unmounted Flap Wheel is characterized by the ability to fit with different materials and irregular surfaces without dead angles, flexible surface contact, processing application feel is more elastic than the handle page-wheel and effortlessly. Our Standard Unmounted Flap Wheel can meet the needs of most customers.
Mainly used in mechanical processing, hardware, casting, auto parts, aviation, high-speed train, shipbuilding and other early and fine processing industries.
Especially suitable for Steel, Cast steel, Stainless, steel (INOX), Non-ferrous metals, Cast iron, Plastics and other materials.
Unmounted Flap Wheel is a kind of abrasive abrasive wheel in the head can be replaced, and the biggest difference with the handle wheel is that the head can be manually removed, without frequent replacement of the supporting tool chuck rod.
| Standard Unmounted Flap Wheel 50mm*5mm*6mm | |||||
| Application | ·Stainless Steel ·Metal ·Non-Ferrous Metal ·Aluminum Alloy Products ·Cast Iron, Etc | Brand | KEYING | Commodity Code | |
| Compatible Tool | Electric Tool Pneumatic Tool Electric Mill Manipulator And Other Tools | Country of Origin | China | Raw Material | Aluminium Oxide Silicon Carbide Zirconia |
| Inner Hole Size | 3mm | For Use On | ·Metal Surface Treatment ·Derusting ·Deburring ·Cleaning Welding Scar ·Cleaning Coating ·Polishing ·Painting Removingand Pre-Treatment. | Grit Size | 60#, 80#, 100#, 120#, 150#, 180#, 240#, 320#, 600# |
| Outside Diameter Range | 50mm | Industries | ·Mechanical Processing ·Hardware ·Casting ·Auto Parts ·Aviation ·High-Speed Train ·Ship Building ·Other Early And Fine Processing Industries | Cloth Base | Domestic Abrasive Clothes lmported Abrasive Clothes |
| Maximum RPM | 15000 | Shape | Standard | Standard Pack Quantity | 100pcs |
| Standard Unmounted Flap Wheel 50mm*10mm*6mm | |||||
| Application | ·Stainless teel ·Metal ·Non-Ferrous Metal ·Aluminum Alloy Products ·Cast Iron, Etc | Brand | KEYING | Commodity Code | |
| Compatible Tool | Electric Tool Pneumatic Tool Electric Mill Manipulator And Other Tools | Country Of Origin | China | Raw Material | Aluminium Oxide Silicon Carbide Zirconia |
| Inner Hole Size | 3mm | For Use On | ·Metal Surface Treatment ·Derusting ·Deburring ·Cleaning Welding Scar ·Cleaning Coating ·Polishing ·Painting Removingand Pre-Treatment. | Grit Size | 60#, 80#, 100#, 120#, 150#, 180#, 240#, 320#, 600# |
| Outside Diameter Range | 50mm | Industries | ·Mechanical Processing ·Hardware ·Casting ·Auto Parts ·Aviation ·High-Speed Train ·Ship Building ·Other Early And Fine Processing Industries | Cloth Base | Domestic Abrasive Clothes lmported Abrasive Clothes |
| Maximum RPM | 15000 | Shape | Standard | Standard Pack Quantity | 50pcs |
| Standard Unmounted Flap Wheel 50mm*20mm*6mm | |||||
| Application | ·Stainless Steel ·Metal ·Non-Ferrous Metal ·Aluminum Alloy Products ·Cast Iron, Etc | Brand | KEYING | Commodity Code | |
| Compatible Tool | Electric Tool Pneumatic Tool Electric Mill Manipulator And Other Tools | Country Of Origin | China | Raw Material | Aluminium Oxide Silicon Carbide Zirconia |
| Inner Hole Size | 3mm | For Use On | ·Metal Surface Treatment ·Derusting ·Deburring ·Cleaning Welding Scar ·Cleaning Coating ·Polishing ·Painting Removingand Pre-Treatment. | Grit Size | 60#, 80#, 100#, 120#, 150#, 180#, 240#, 320#, 600# |
| Outside Diameter Range | 50mm | Industries | ·Mechanical Processing ·Hardware ·Casting ·Auto Parts ·Aviation ·High-Speed Train ·Ship Building ·Other Early And Fine Processing Industries | Cloth Base | Domestic Abrasive Clothes lmported Abrasive Clothes |
| Maximum RPM | 15000 | Shape | Standard | Standard Pack Quantity | 20pcs |
| Standard Unmounted Flap Wheel 50mm*25mm*6mm | |||||
| Application | ·Stainless Steel ·Metal ·Non-Ferrous Metal ·Aluminum Alloy Products ·Cast Iron, Etc | Brand | KEYING | Commodity Code | |
| Compatible Tool | Electric Tool Pneumatic Tool Electric Mill Manipulator And Other Tools | Country Of Origin | China | Raw Material | Aluminium Oxide Silicon Carbide Zirconia |
| Inner Hole Size | 3mm | For Use On | ·Metal Surface Treatment ·Derusting ·Deburring ·Cleaning Welding Scar ·Cleaning Coating ·Polishing ·Painting Removingand Pre-Treatment. | Grit Size | 60#, 80#, 100#, 120#, 150#, 180#, 240#, 320#, 600# |
| Outside Diameter Range | 50mm | Industries | ·Mechanical Processing ·Hardware ·Casting ·Auto Parts ·Aviation ·High-Speed Train ·Ship Building ·Other Early And Fine Processing Industries | Cloth Base | Domestic Abrasive Clothes lmported Abrasive Clothes |
| Maximum RPM | 15000 | Shape | Standard | Standard Pack Quantity | 20pcs |
Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.
The clamping length between shank and grinders should be more than 15mm.
Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
