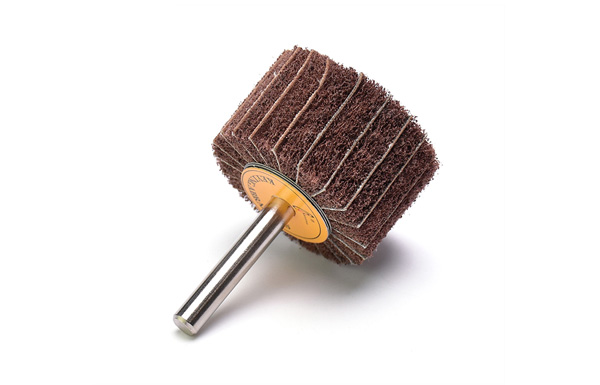

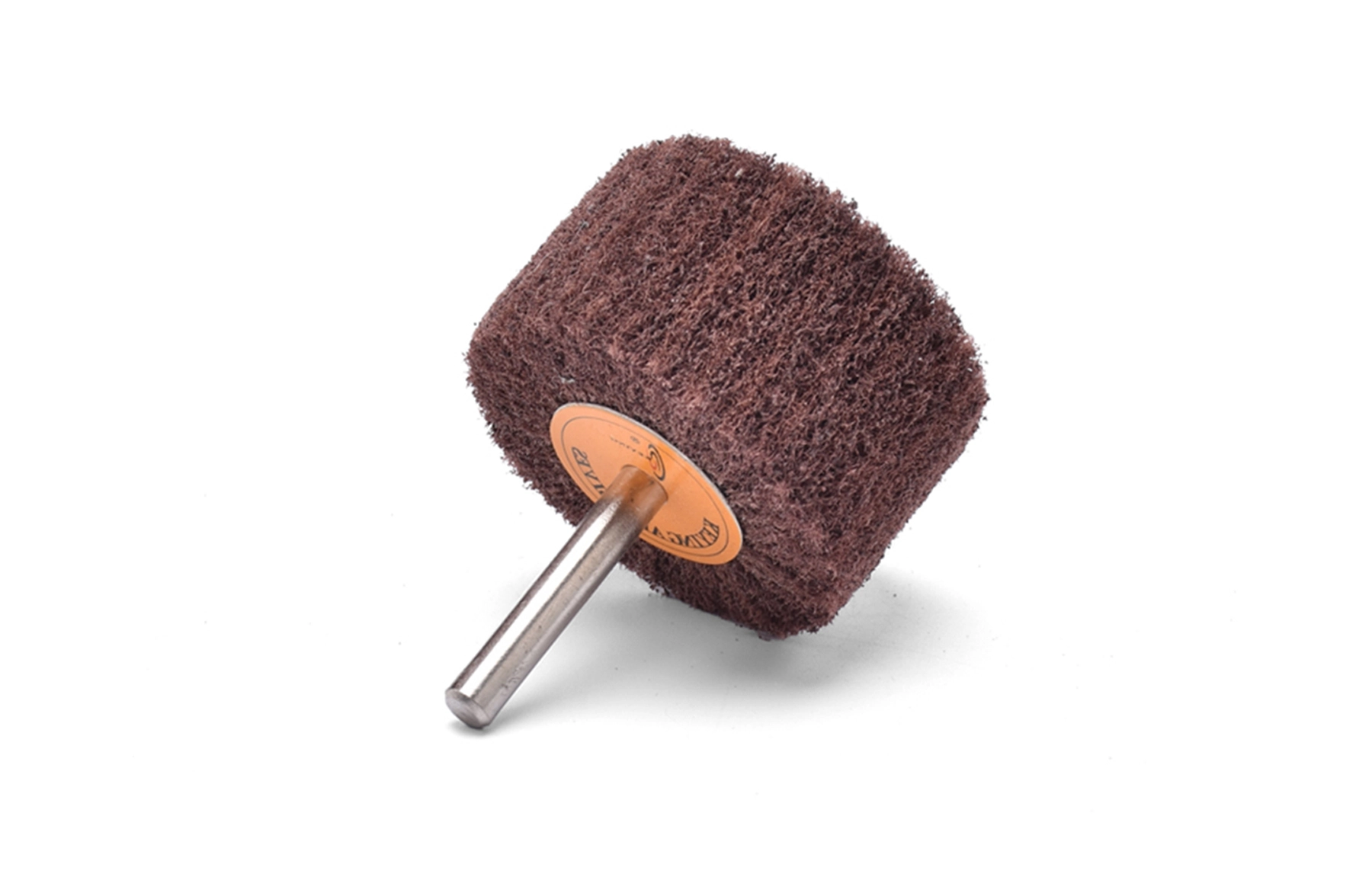

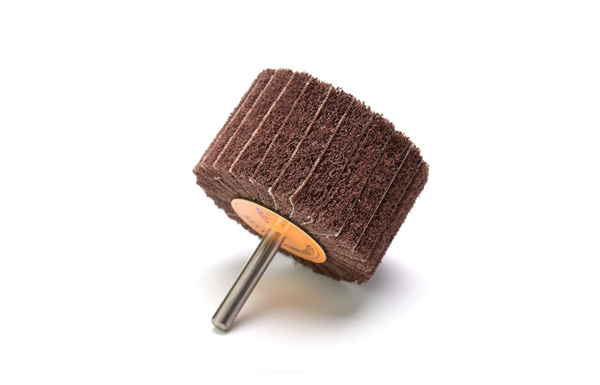

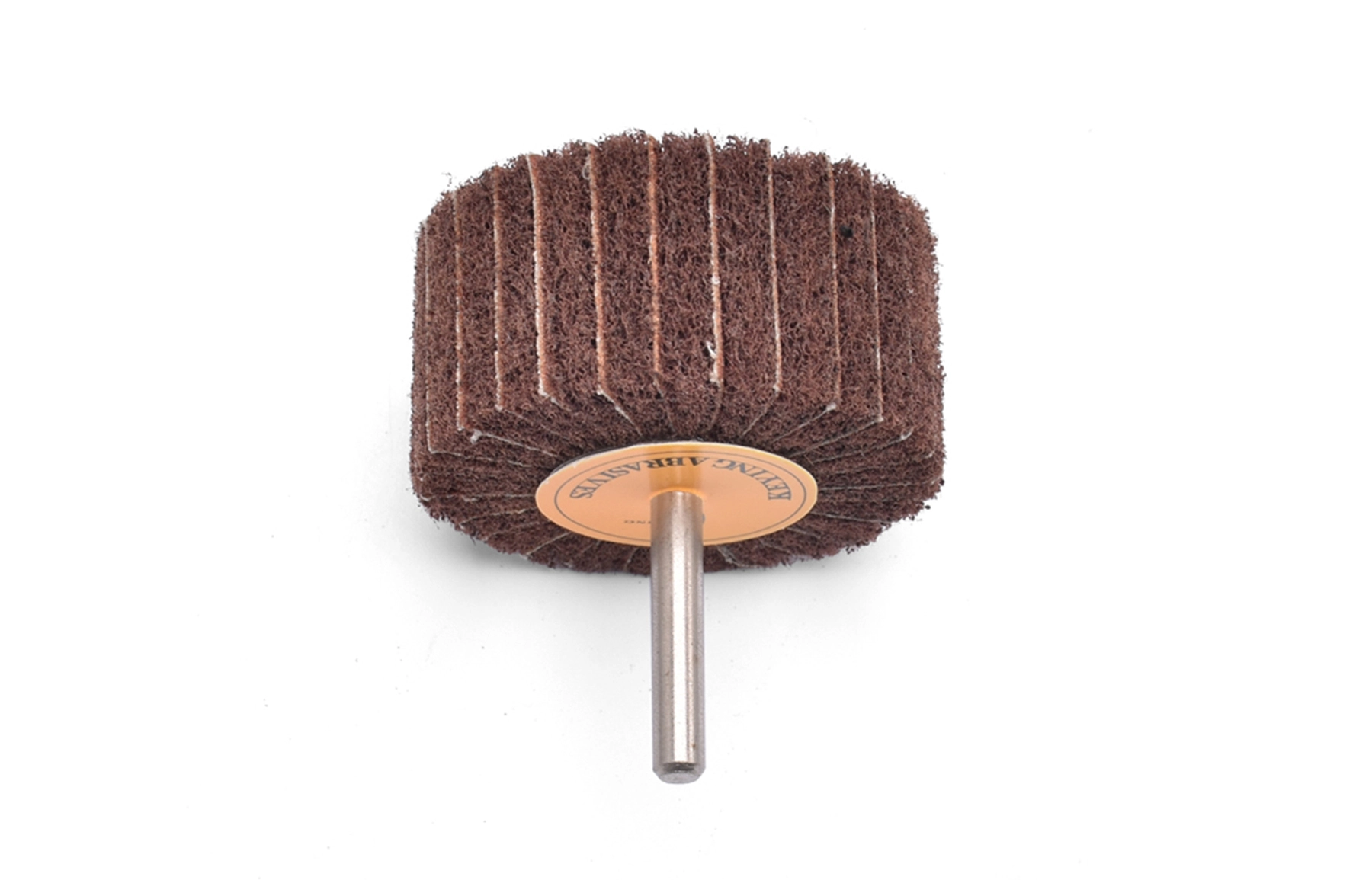

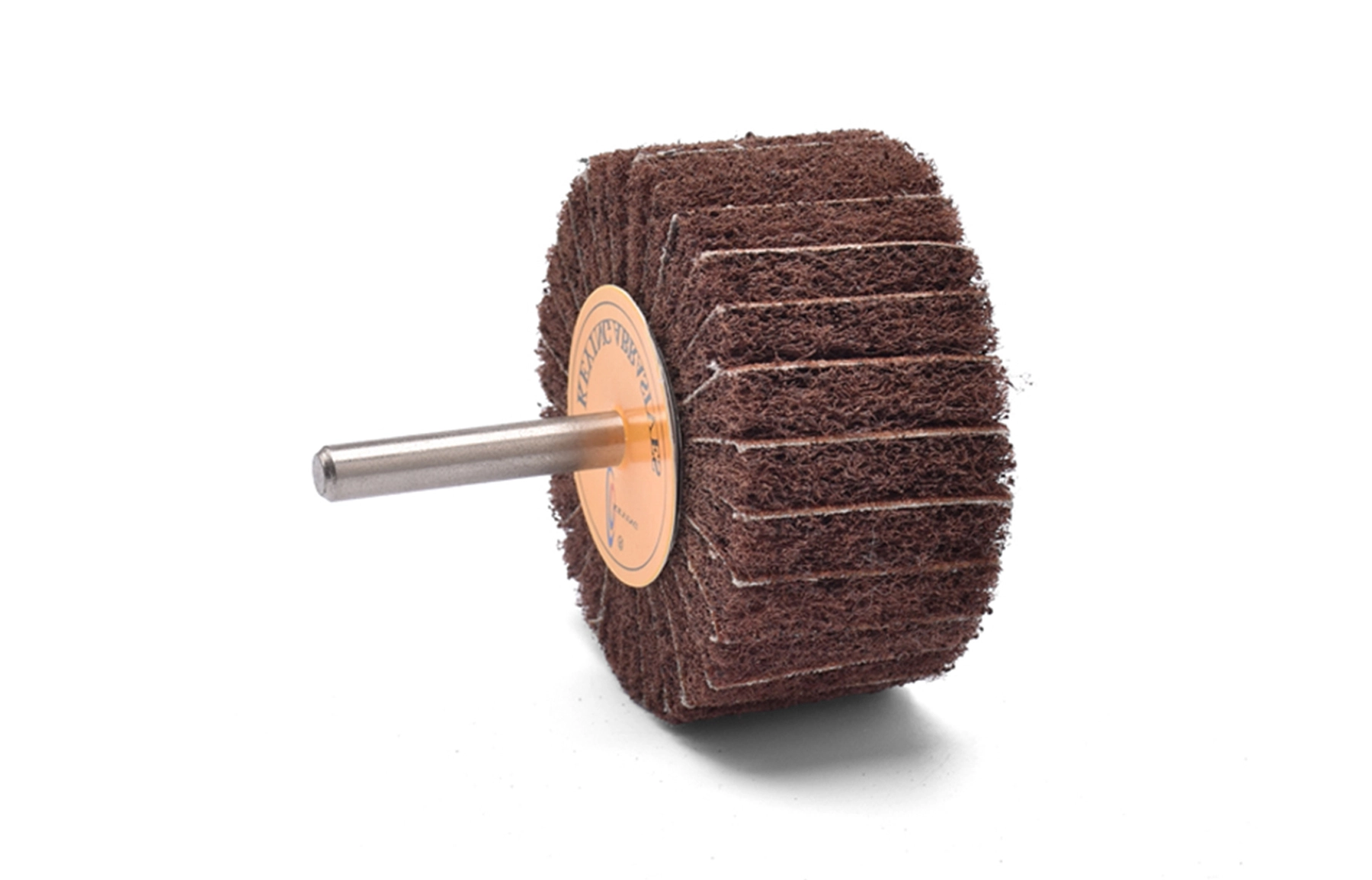

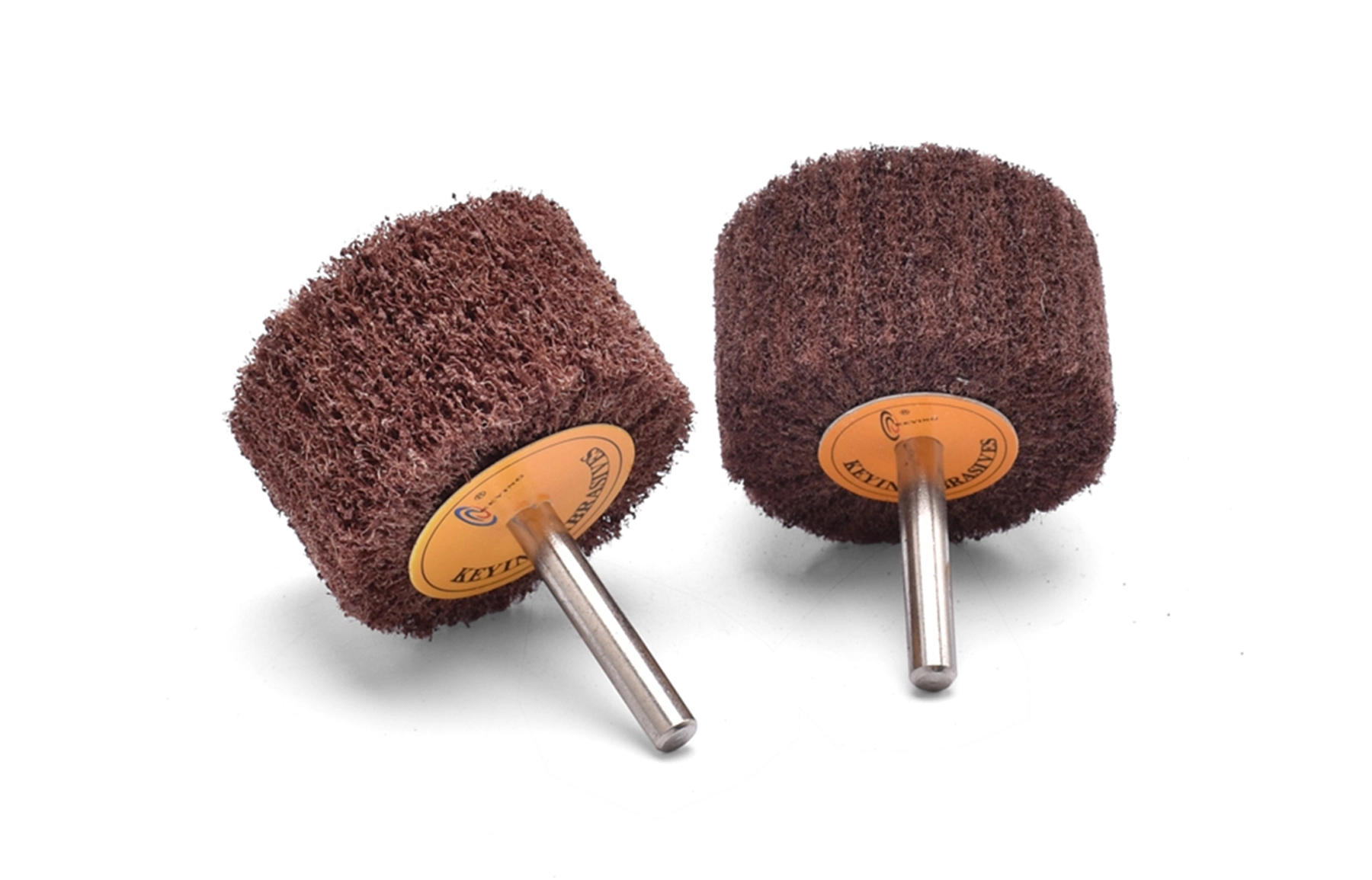

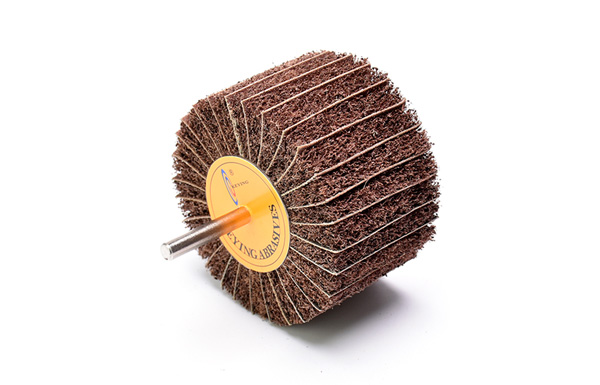

Non-woven Abrasive Cloth Flap Wheel With Shank - Cylinder Shape (CL)

Name: Non-woven Abrasive Cloth Flap Wheel With Shank - Cylinder Shape (CL)
Brand: Wenling Keying Abrasives Co., Ltd.



The non-woven abrasive material is arranged in multiple radial flaps, with abrasive cloth interlayers.

This non woven flap wheel structure facilitates improved stock removal and achieves a coarser surface finish.

 Contact us

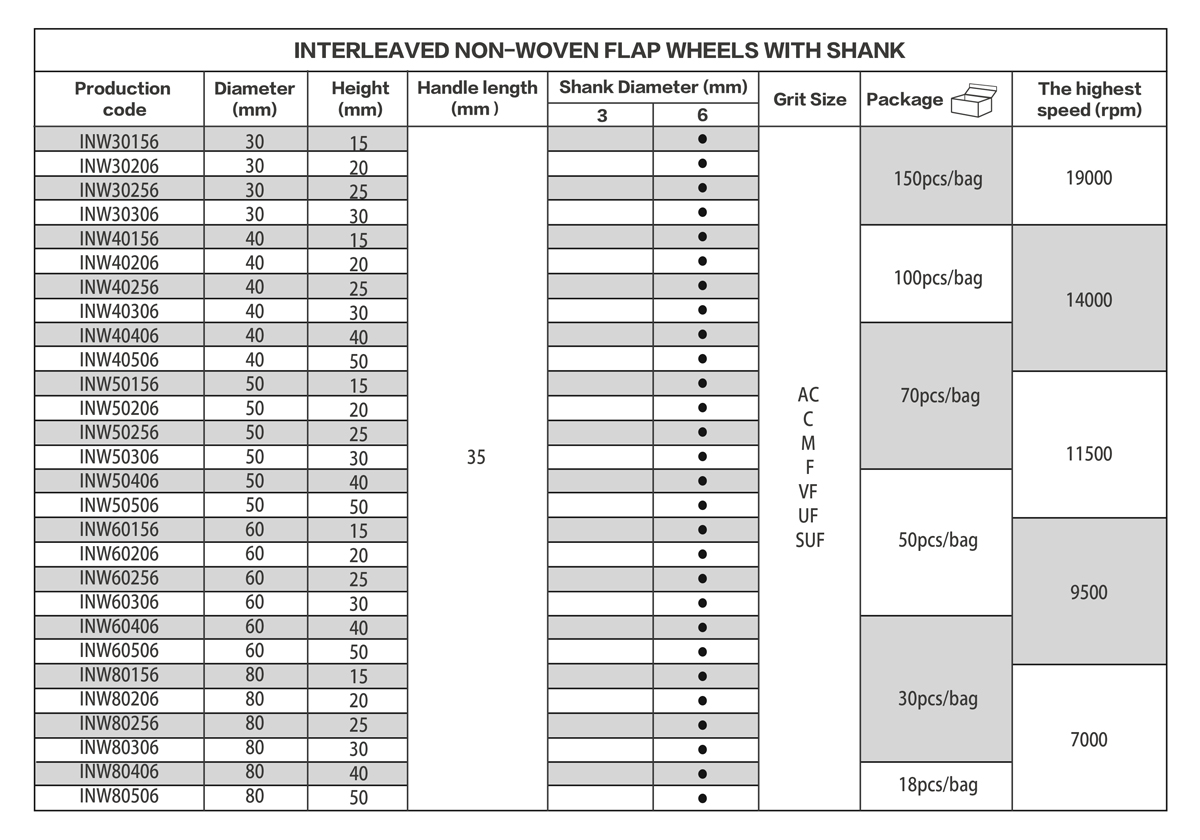

Non-woven Abrasive Cloth Flap Wheel With Shank - Cylinder Shape (CL) Non-woven Flap Wheel (with Abrasive) Size Table

Non-woven Abrasive Cloth Flap Wheel With Shank - Cylinder Shape (CL)

Max. RPM: 7000~19000 RPM
Outer Diameter: 30mm/40mm/50mm/60mm/80mm
Shank Diameter: 3mm/3.175mm/6mm/6.35mm
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC)
Grit Size: Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

Safety Warning of Non-woven Abrasive Cloth Flap Wheel With Shank - Cylinder Shape (CL)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
