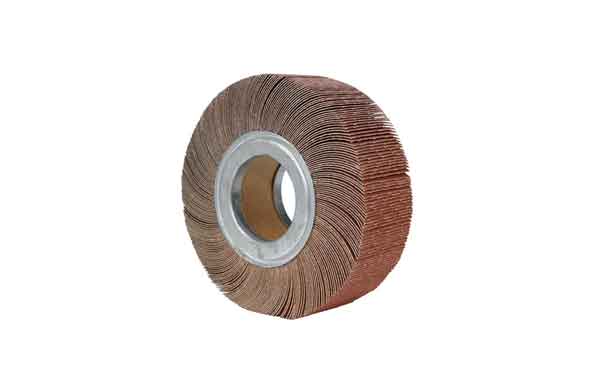

Unmounted Flap Wheels

Name: Unmounted Flap Wheels
Brand: Wenling Keying Abrasives Co., Ltd.

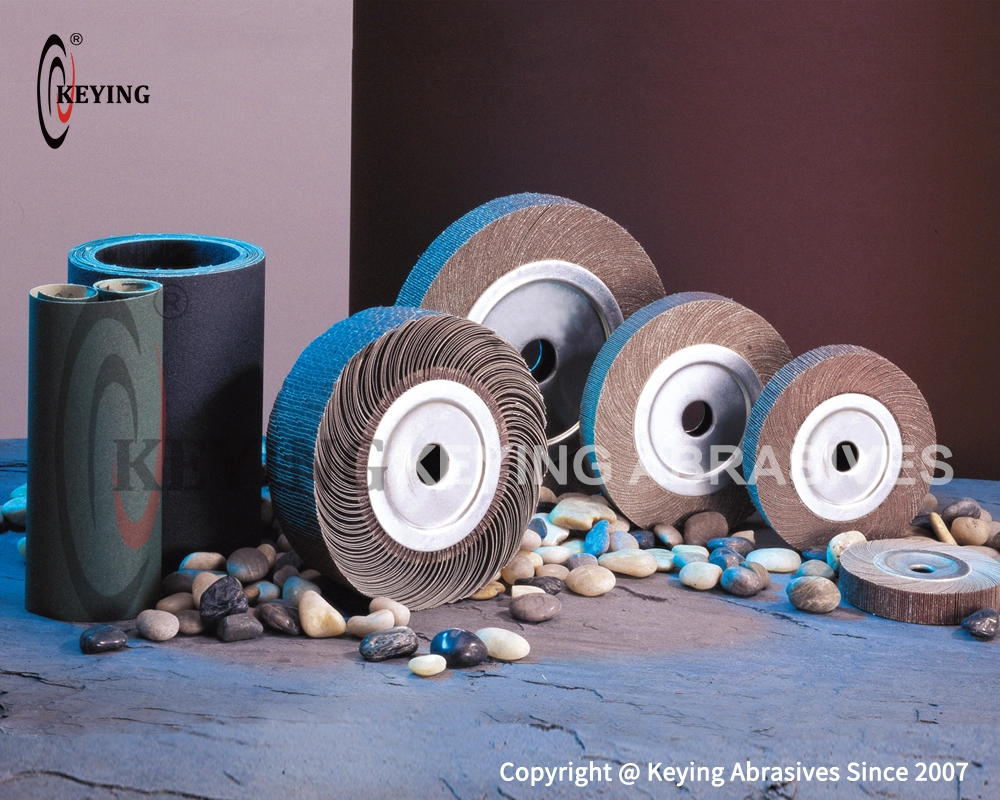

For larger hand tools or off-hand applications, we provide flap wheels in diameters from 4" to 8", OEM sizes is avaliable. A broad selection of grades is available to deburr edges, remove flash and parting lines, blend machine marks, apply a linear scratch pattern, or provide light blending, cleaning, or polishing. These sizes have a diffirent center hole compatible with larger tool arbors. The larger wheels contain more flaps per wheel for faster cutting, increased productivity, and longer life.

The ideal tool for use on angle grinders in assembly shop operations.For aggressive grinding with maximum stock removal rate on hard materials which do not conduct heatwell. Consistently high performance due to self-sharpening ceramic oxide grain.Active arinding additives in the coating substantially improve the stock removal rate, prevent clogging andresult in cooler grinding.

 Contact us

Call us +8615067699991

Specification of Unmounted Flap Wheels

Max. RPM: 3800-9500 RPM
Diameter: 100mm/150mm/200mm/250mm
Center Hole Diameter: 25mm/50mm
Raw Materials: Aluminum Oxide (AO)/Ceramic Oxide (CO)

Unmounted Flap Wheels Materials that can be worked:

Aluminium
Copper
Other non-ferrous metals
Soft non-ferrous metal
Brass
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Unounted Flap Wheels Applicable Industries

Applications

Leveling
Deburring
Surface work
Weld dressing
Fine grinding in multiple steps

Applicable Industries

Grinding of flat, concave, convex surfaces and profiles of different materials

More Application Here Below

Levelling
Deburring
Surface fabricating
Working on edges
Welding
Step-by-step fine grinding

Surface Can Be Used On

Soft Aluminium alloys
Hard Aluminium alloys
copper
Zinc
Steels
Carbon Steels
Stainless Steel
Cast iron
Fiber-reinforces plastics
Glass
Wood
Titanium
Plastic
Please click here to understand more about How to Use the Non-woven Flap Wheels.

Safety Instructions of Umounted Flap Wheels

Instructions:

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal laoding on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
