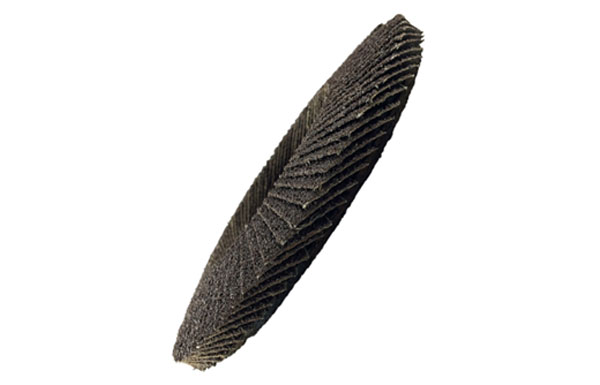

Conical T29 Flap Disc

conical t29 flap disc

Type 29 allows for more aggressive cutting action, making this option ideal for stock removal and faster cutting on flats or contours. Compared to a regular grinding wheel, a flap disc that cuts cooler works faster and is more user-friendly. The phenolic resin disc plate cushions the disc and reduces disc vibration, producing optimal finish and greater operator comfort. Moreover, the flexibility of the flaps also reduces vibration and produces smoother results, which means the disc is easier to control and causes less operator fatigue.

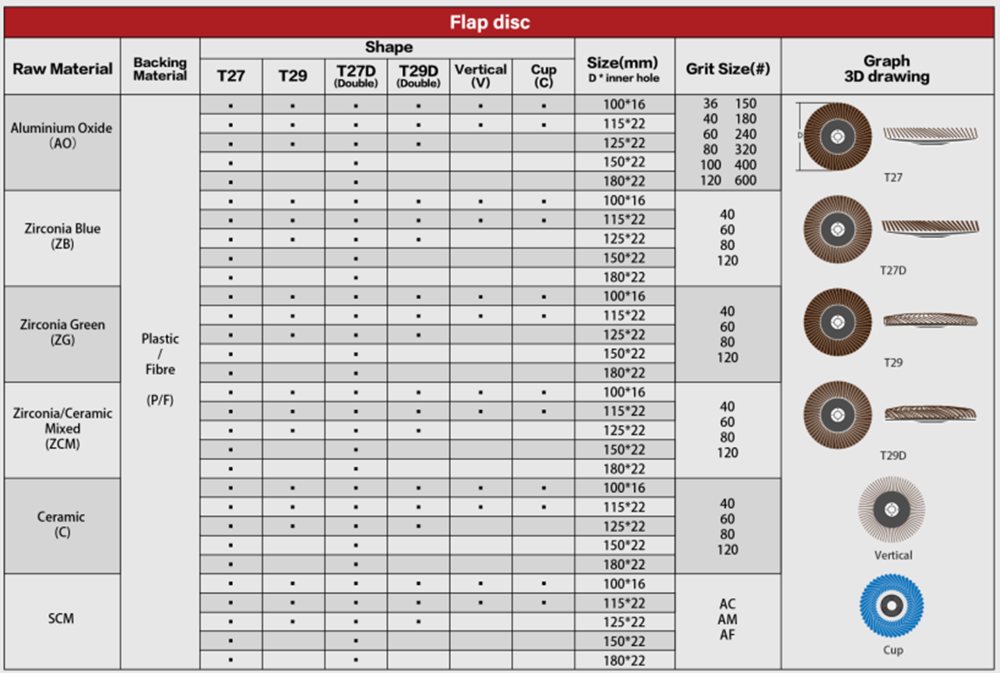

Shape Chart of Conical T29 Flap Disc

Shape Chart of Conical T29 Flap Disc


Specification of Conical T29 Flap Disc:

▶ Type: Conical T29

▶ Max. RPM: 12200~15300 RPM

▶ Back Material: Fiber/Plastic

▶ Diameter: 100mm/115mm/125mm/150mm/180mm

▶ Raw Materials: Aluminum Oxide (AO), Zirconia Blue (ZB), Zirconia Green (ZG), Ceramic (C), SCM

▶ Grit Size: 36#~600#


of Conical T29 Flap Disc Materials that can be worked:

▶ Stainless steel (INOX)

▶ Steel

Applications:

▶ Deburring

▶ Chamfering

▶ Work on edges

▶ Weld dressing

▶ Work on fillet welds

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
