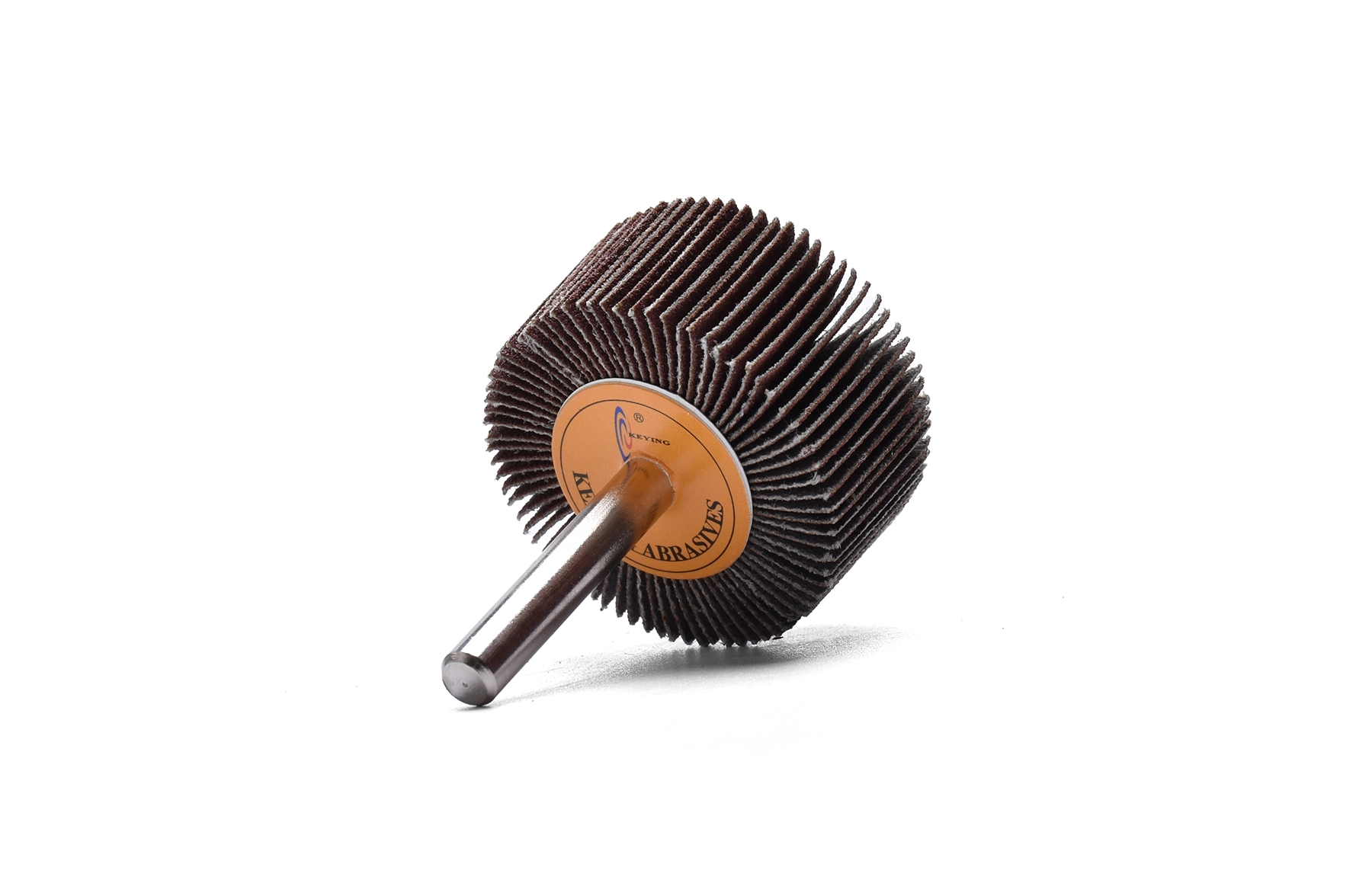

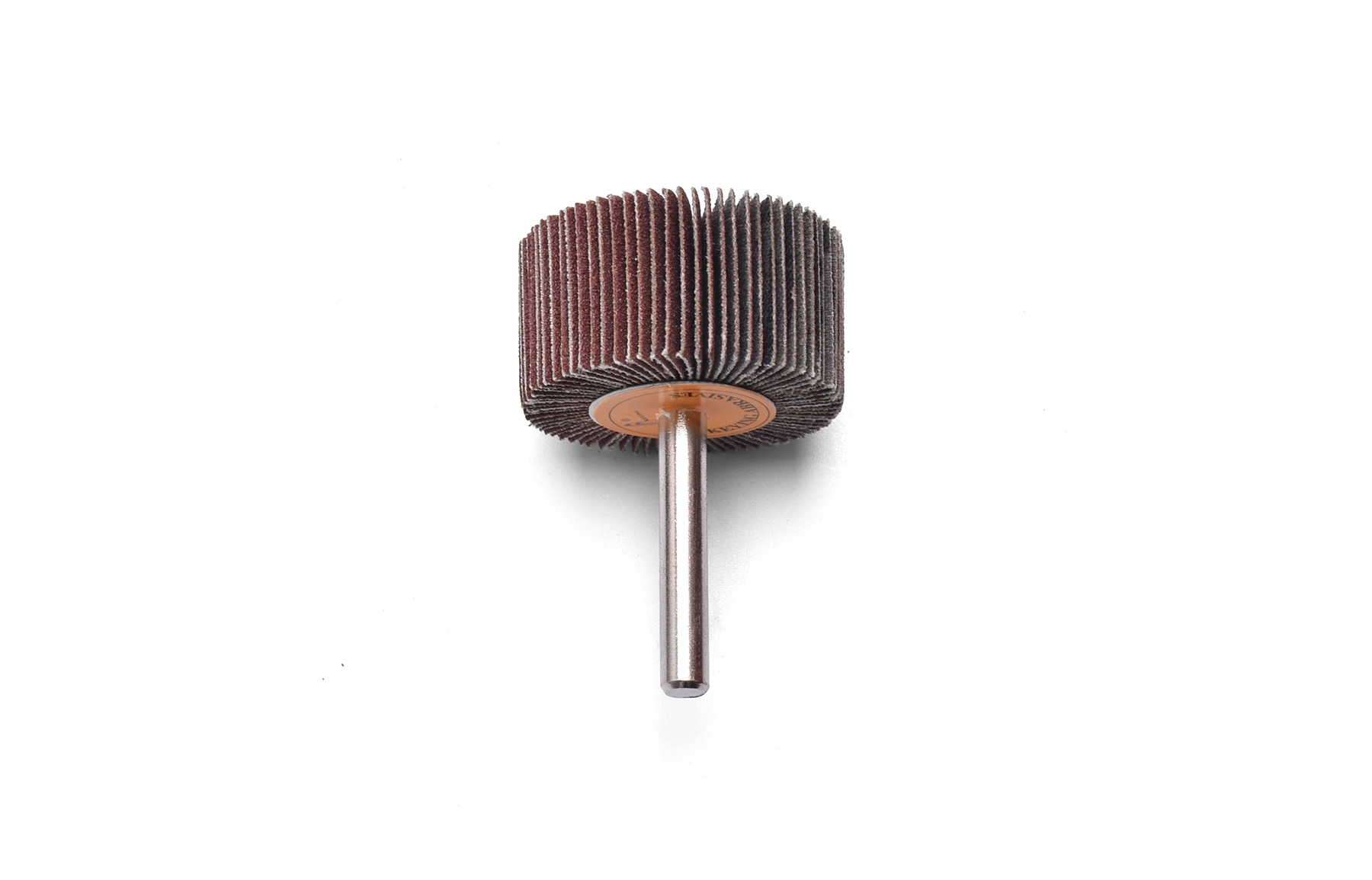

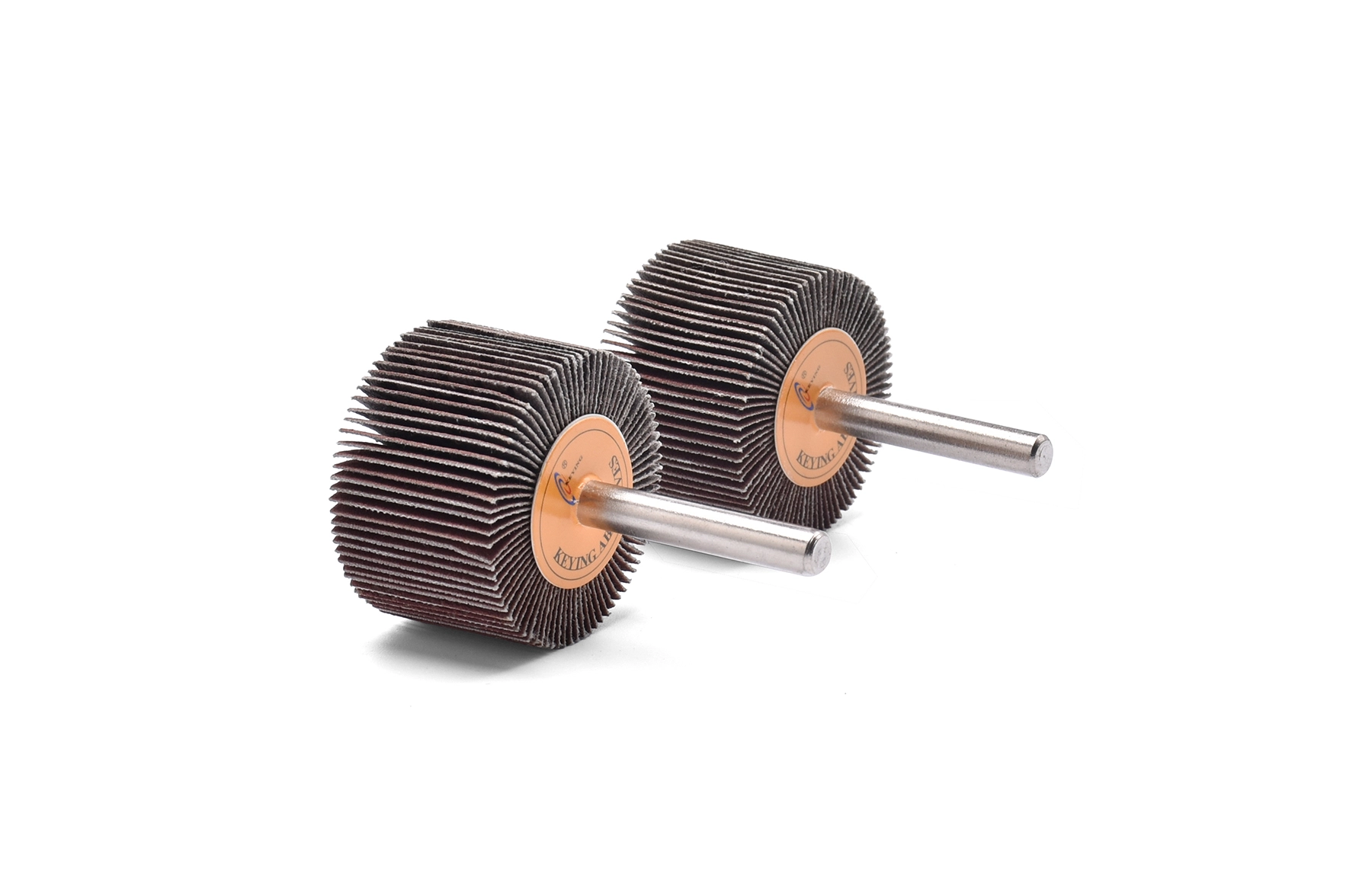

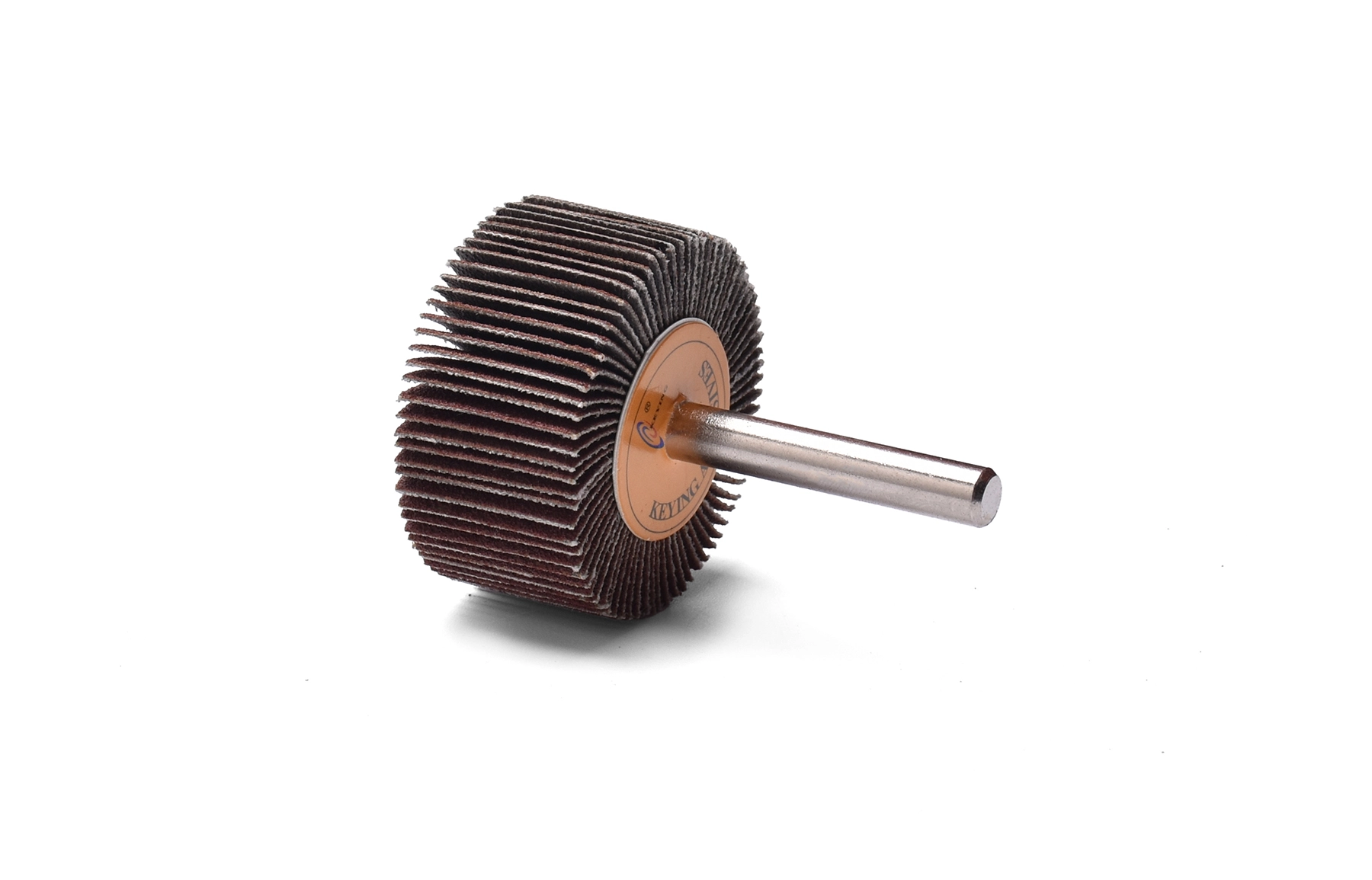

Flap Wheel 1-9/16 Inch

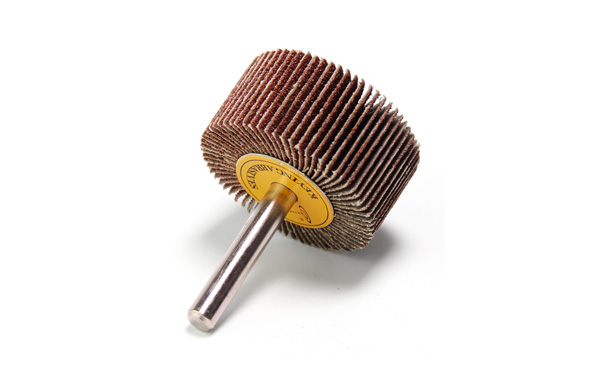

flap wheel 1 9 16inch

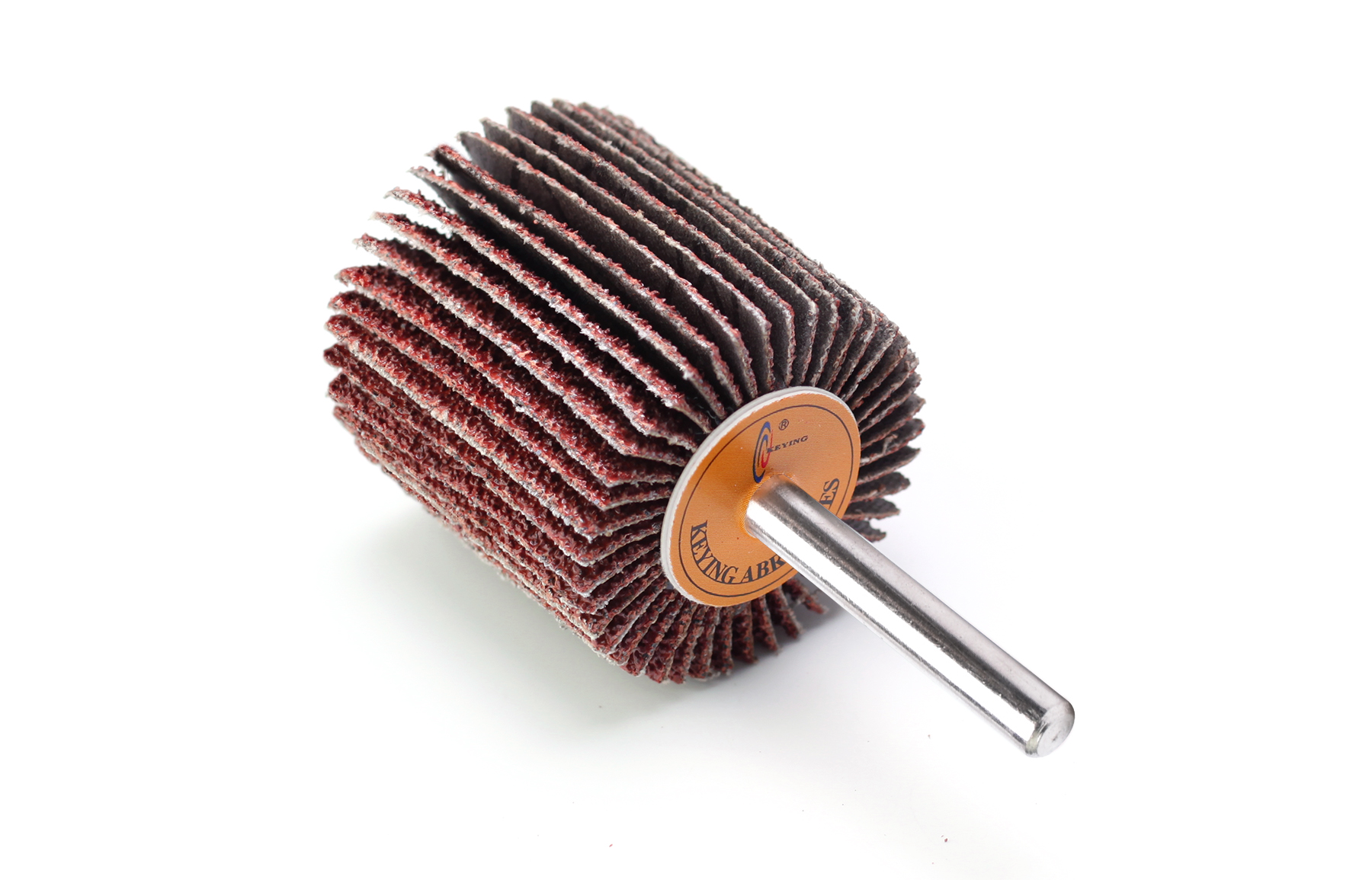

mounted flap wheels 40 40 6 3
mounted flap wheels 40 20 6 4
mounted flap wheels 40 40 6 5

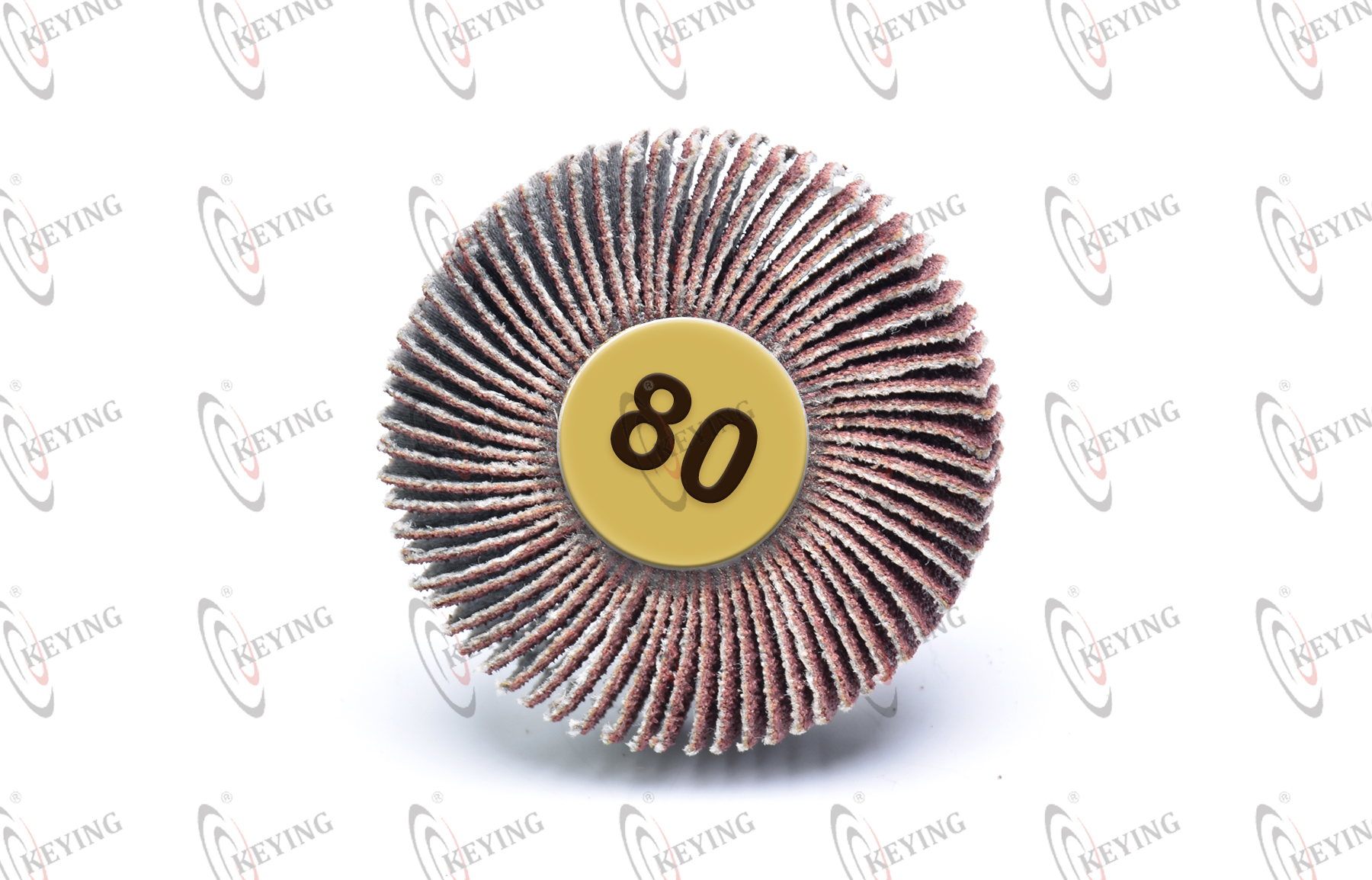

mounted flap wheels 40 10 6 3

On the Mounted Flap Wheel, the flap made of coated abrasive is arranged radially around the tool axis in a fan-shaped structure.

Their flexibility enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.

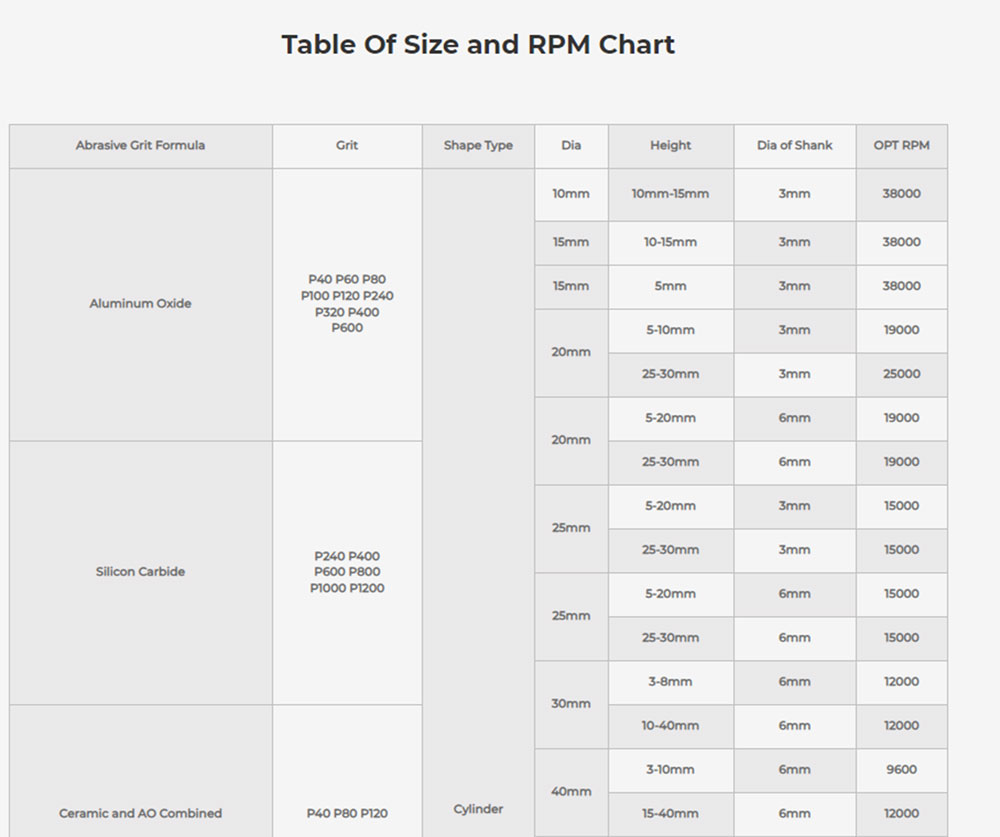

Table of Flap Wheel 1-9/16 Inch Size

Table of Flap Wheel 1-9/16 Inch Size


Flap Wheel 1-9/16 Inch Specification:

  • Diameter: 1-9/16 inch=40mm

  • Max. RPM: 20000 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#

  • Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)


Flap Wheel 1-9/16 Inch Materials that can be Worked:

  • Aluminium

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Steel, cast steel


Flap Wheels with Shank

Flap wheels with Shank are suitable for grinding small areas, dead angles, inner hole surfaces, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


Advantages:

High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.


Flap Wheel 1-9/16 Inch Applications

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Structuring (matt finishing, brush matting, and satin finishing)

  • Fine grinding in multiple steps

Flap Wheel 1-9/16 Inch Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel 1-9/16 Inch Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Flap Wheel 1-9/16 Inch Applicable Industries

Safety Warning of Flap Wheel 1-9/16 Inch

 Instructions:

Safety Warning of Flap Wheel 1-9/16 Inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
