Name: Flap Wheel 3 Inch
Brand: Wenling Keying Abrasives Co., Ltd.

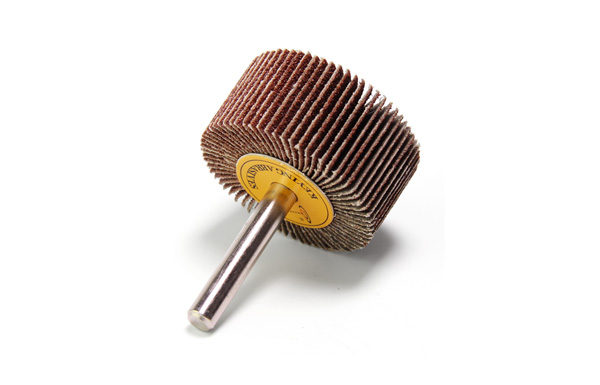

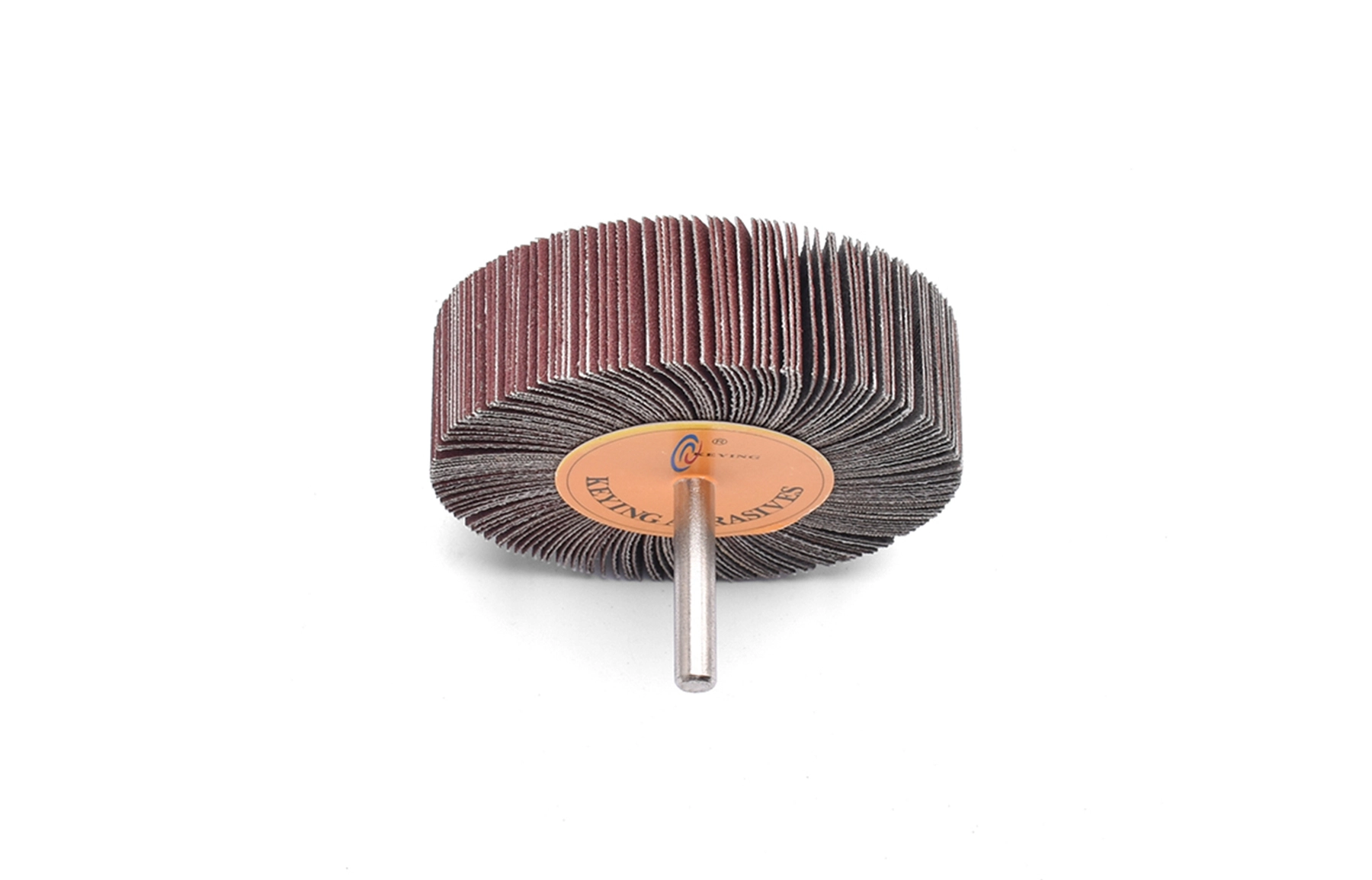

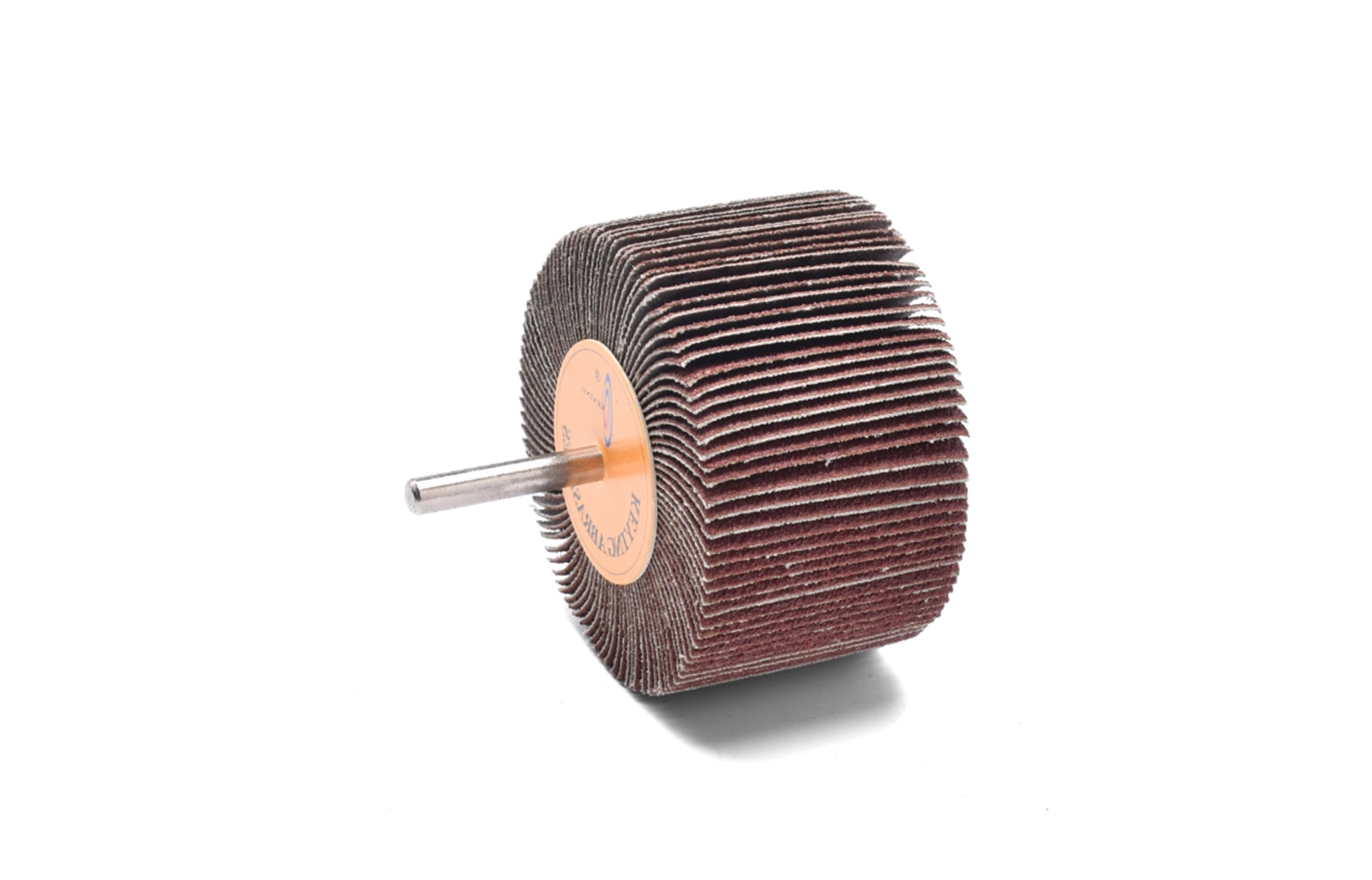

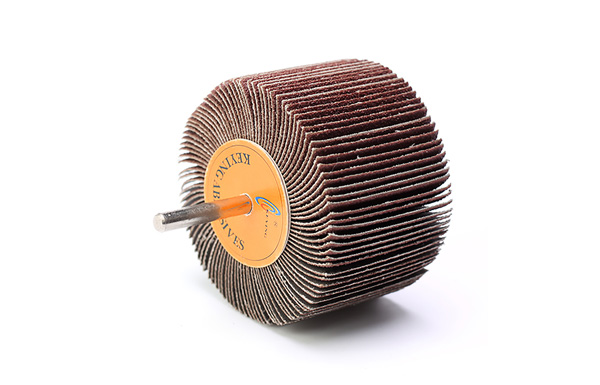

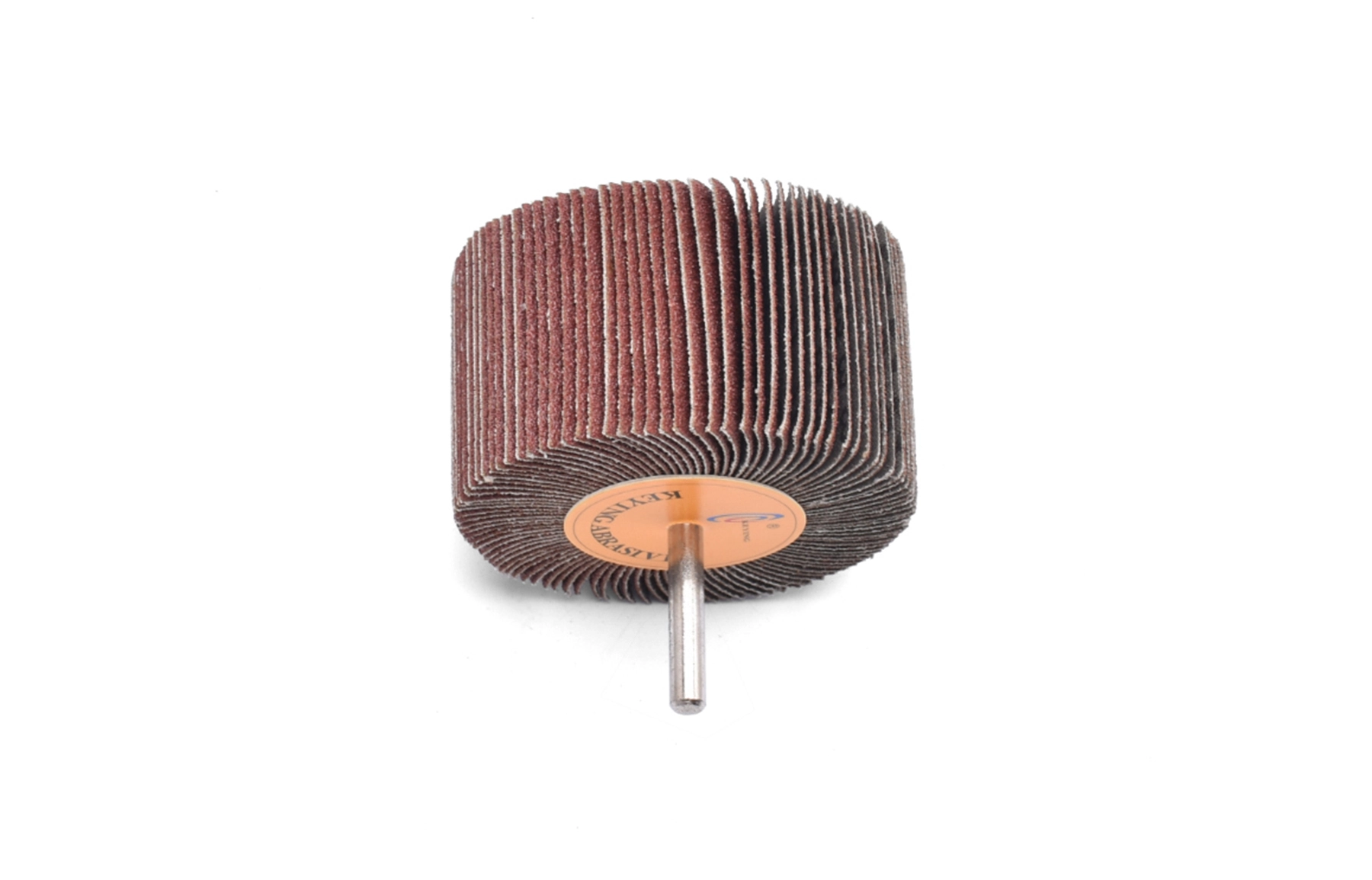

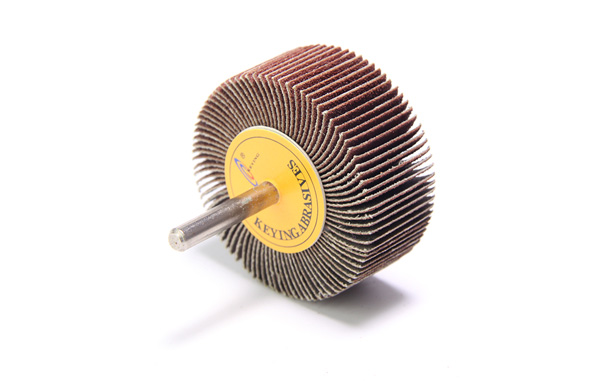

Flap Wheel 3 Inch



Mounted flap wheels typically consist of multiple abrasive flaps arranged radially around a central core or shaft.Their flexible size range and varying heights enable them to adapt perfectly to the contours of the workpiece.

 Contact us

Call us +8615067699991

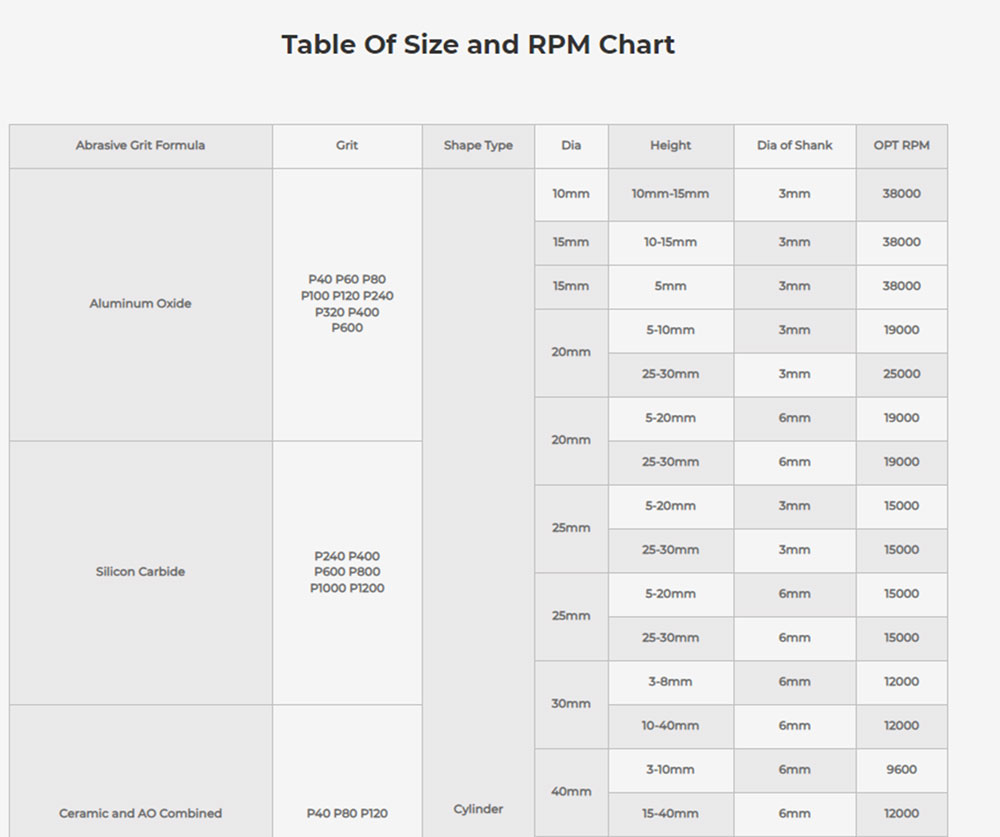

Table of Flap Wheel 3-Inch Size

Table of Flap Wheel 3 Inch Size

Flap Wheel 3-Inch Specification:

Diameter: 3 inch=75mm
Max. RPM: 9000~15000 RPM
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size: 40#~1200#
Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

Flap Wheel 3-Inch Materials that can be Worked:

Ferrous Metals
Stainless Steel
Non-Ferrous Metals
Iron
Brass
Aluminum
Copper
Wood
Stone
Fiberglass
Rubber

Advantages：

● Flexibility in dimensions, materials, and shank sizes.

● High material removal rates and extended tool life.

● Available in various shapes and designs,

● Suitable for processing different edges, corners, flat surfaces, or curved molds.

Features:

Automatic Polishing: Achieves seamless processing of both convex and concave surfaces with high precision.
Versatile Edge Processing: Simultaneously refines a variety of edges and angles, ensuring comprehensive coverage.
Efficient Performance: Provides uniform and reliable outcomes even on intricate geometric structures.

Flap Wheel 3 Inch Applicable Industries

Applicable Industries

Metalworking
Woodworking
Plastics
Glass
Stone Processing
Automotive Industry
Aerospace Industry

Application Purpose

Trimming uneven surface
Grinding furniture
Clean up welds
Stripping of old layers of paint
Deburring and Levelling
Polishing side surface

Safety Warning of Flap Wheel 3 Inch

Instructions:

Safety Warning of Flap Wheel 3 Inch

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal laoding on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
