Name: Grinding Head X 5/32inch
Brand: Wenling Keying Abrasives Co., Ltd.

Specifications of Grinding Head X 5/32inch

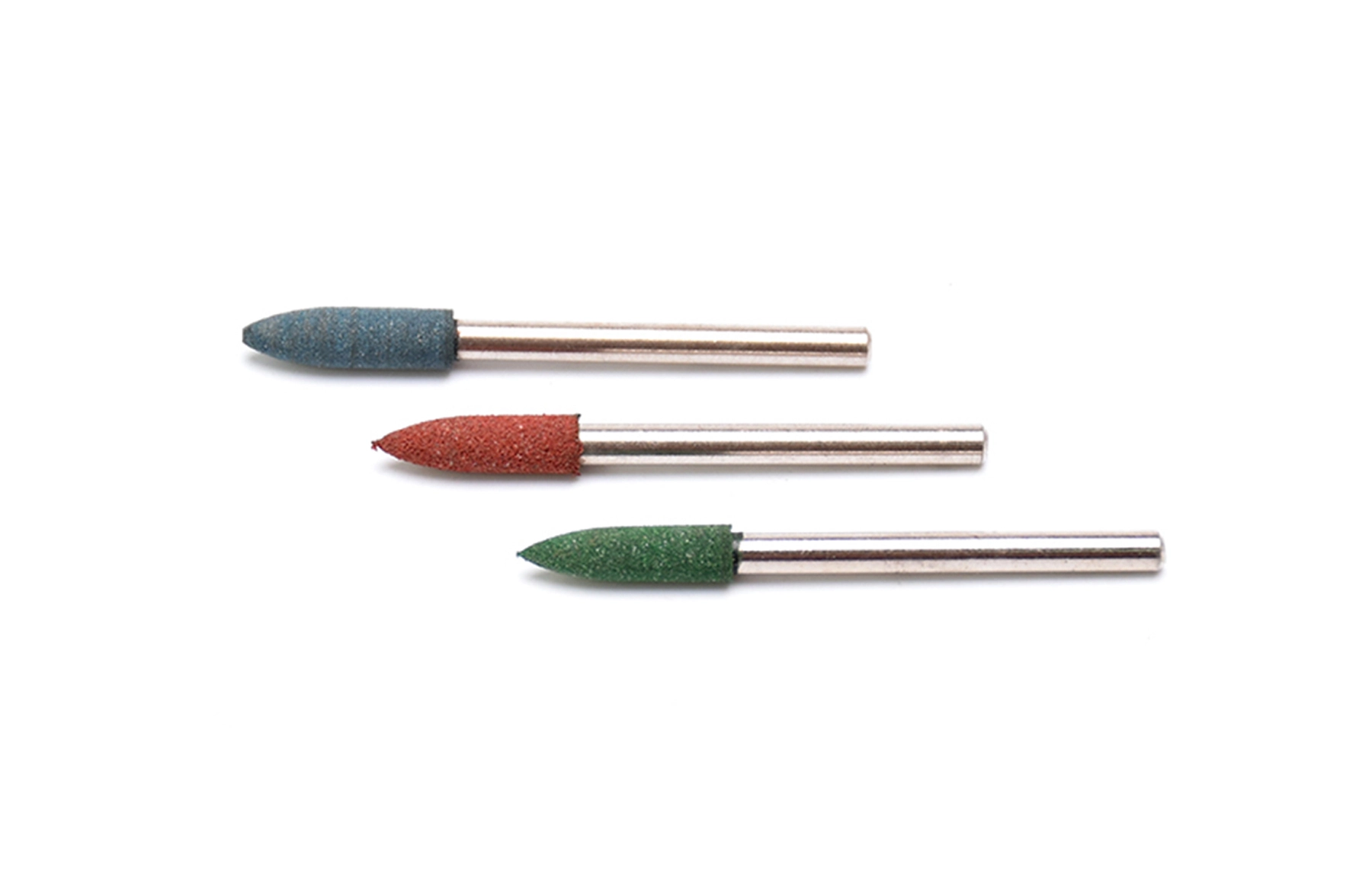

4mm15mm3mm Conical Rubber Mounted Head Φ4mm
Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	XBS4153+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Oxide Silicon Carbide（80#, 120#）
Diameter*Height	4mm*15mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	Conical	Standard Pack Quantity	100pcs

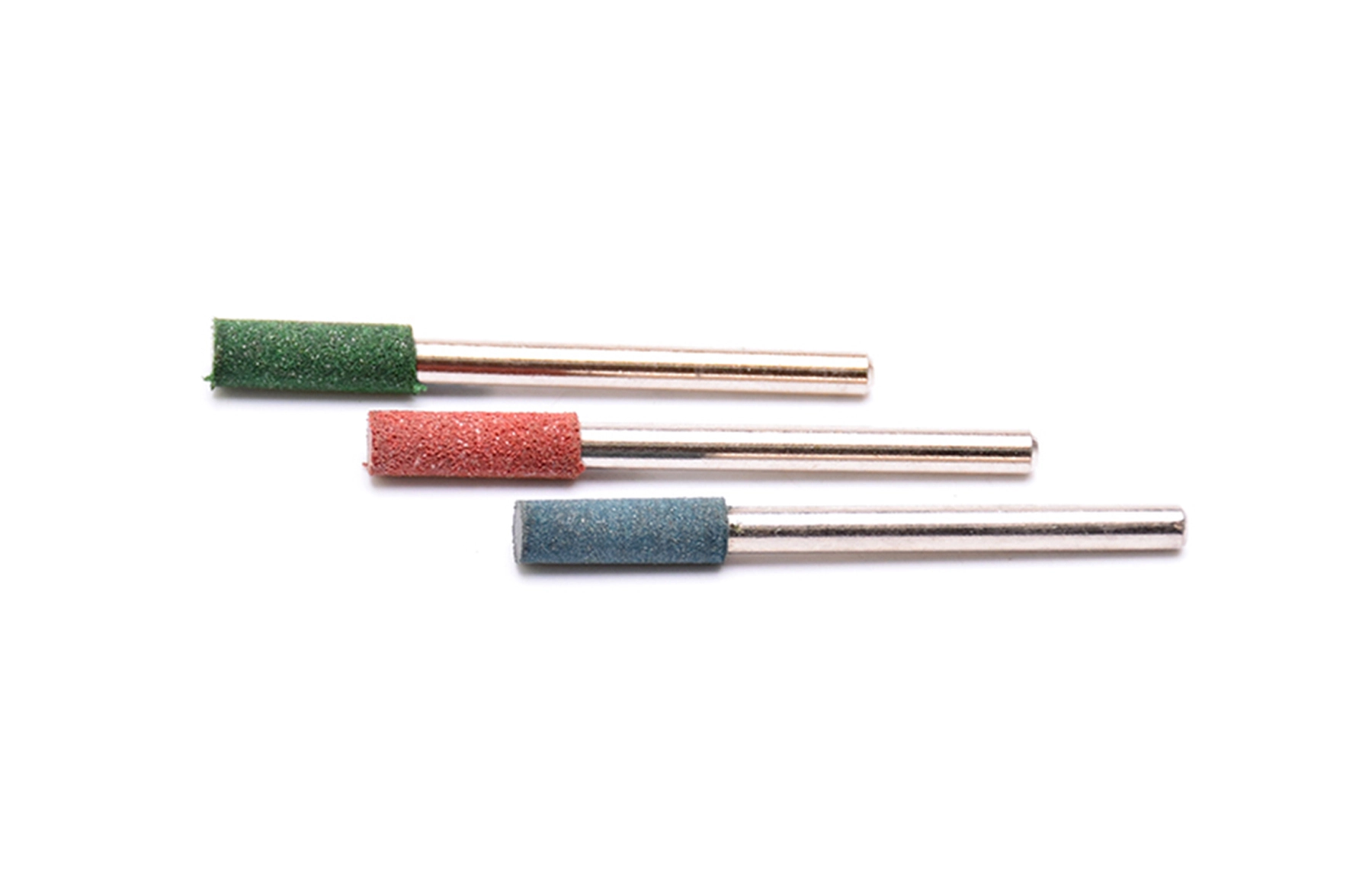

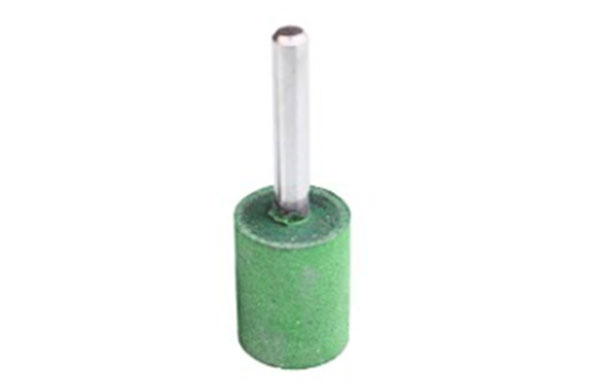

4mm15mm3mm Cylinder Rubber Mounted Head Φ4mm
Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	XCL4153+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Oxide Silicon Carbide（80#, 120#）
Diameter*Height	4mm*15mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	Cylinder	Standard Pack Quantity	100pcs
4mm15mm2.35mm Conical Rubber Mounted Head Φ4mm
Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	XBS4152.35+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Oxide Silicon Carbide（80#, 120#）
Diameter*Height	4mm*15mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	Conical	Standard Pack Quantity	100pcs
4mm15mm2.35mm Cylinder Rubber Mounted Head Φ4mm
Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	XCL4152.35+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Oxide Silicon Carbide（80#, 120#）
Diameter*Height	4mm*15mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	Cylinder	Standard Pack Quantity	100pcs
4mm15mm3.175mm Conical Rubber Mounted Head Φ4mm
Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	XBS4153.175+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Oxide Silicon Carbide（80#, 120#）
Diameter*Height	4mm*15mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	Conical	Standard Pack Quantity	100pcs
4mm15mm3.175mm Cylinder Rubber Mounted Head Φ4mm
Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	XCL4153.175+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Ooxide Silicon Carbide（80#, 120#）
Diameter*Height	4mm*15mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	Cylinder	Standard Pack Quantity	100pcs

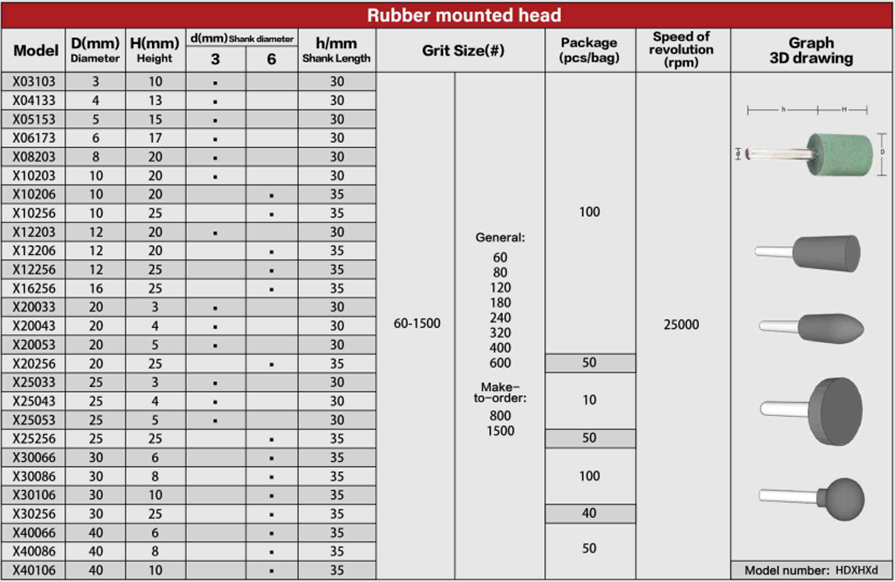

Table of Grinding Head X 5/32inch

Features of Grinding Head X 5/32inch

The most prominent features of this series of products are soft polishing and fine polishing.
Used for fine grinding and polishing, can make the workpiece surface to a higher level of surface finish such as mirror.
Widely used in precision polishing and deburring technology, edge seam grinding process.
Can cooperate with various high speed electric tools or pneumatic tools.

Grinding Head X 5/32inch Applicable Industries

Applications

Remove burn marks, scales, rust, scratches, dents and chuck marks of the resin mold cleaning treatment
As well as suitable for paint removal, electroplating and coating

Grinding Head X 5/32inch Applicable Industries

Recommendations for Use:

By adjusting the granularity of the rubber material, the processing scratches can be prevented.

Matching Tool Drives:

Angle grinders
Mini angle grinder

Safety Instructions of Grinding Head X 5/32inch

How To Use Grinding Head X 5/32inch

Instructions:

Safety Instructions of Grinding Head X 5/32inch

Please try to choose operation indoors environment and wear protective guards and goggles.
Never to exceed the recommanded maximum permitted rotational speed for safety reasons.
In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
