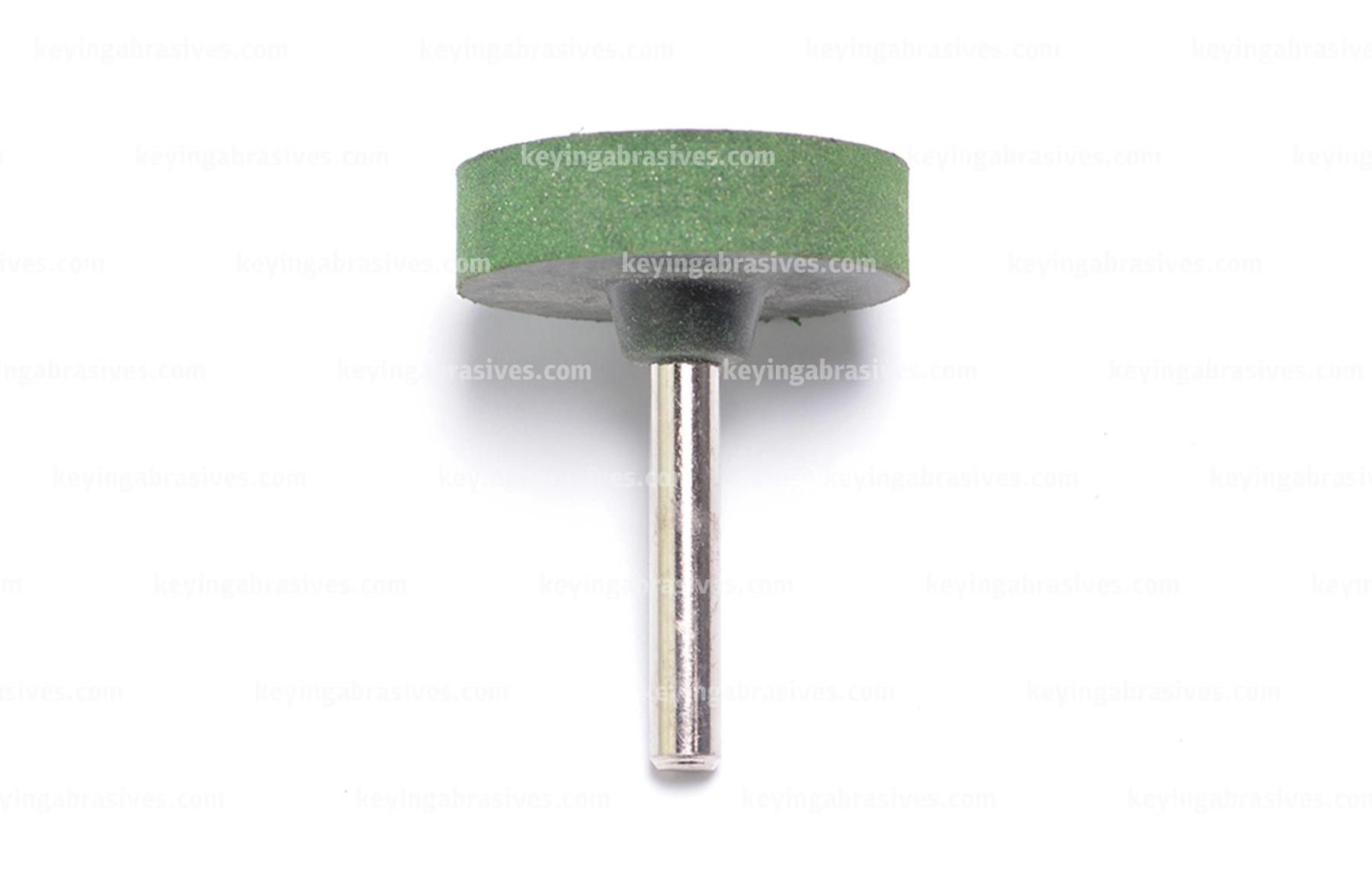

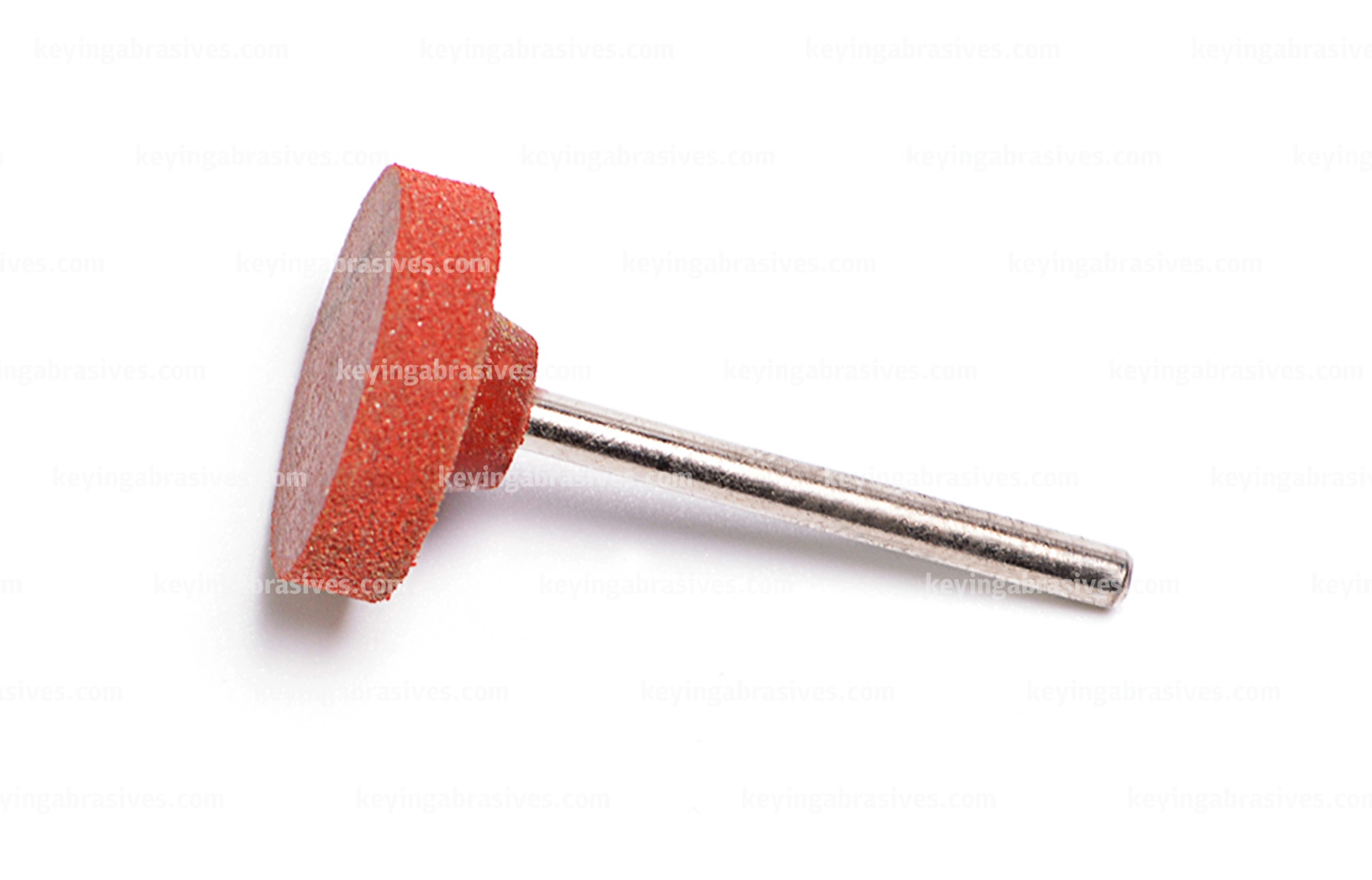

Grinding Head X - T Shape (T)

Name: Grinding Head X - T Shape (T)
Brand: Wenling Keying Abrasives Co., Ltd.



KEYING Rubber Mounted Head has a variety of specifications and granularity, accept non-standard size customization, including diameter, handle diameter, material, handle length and so on. The most prominent characteristics of KEYING Rubber Mounted Head are good grinding force, stable performance, long service life, small dust, can cooperate with the use of various high speed power tools or pneumatic tools. Mainly suitable for all kinds of casting molds, metal products, such as grooves, edges and holes concave and convex cleaning, to weld, deburr and fine polishing processing.

 Contact us

Call us +8615067699991

Specifications of Grinding Head X - T Shape (T)

Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	0	KEYING	Commodity Code	XT30106+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium Oxide Silicon Carbide（80#, 120#）
Diameter	20mm, 25mm, 30mm, 40mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	60#, 80#, 120#, 180#, 240#, 320#, 400#, 600# Make-to-order: 800#, 1500#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Purple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM	25000	Shape	T-Type	Standard Pack Quantity	50pcs/100pcs

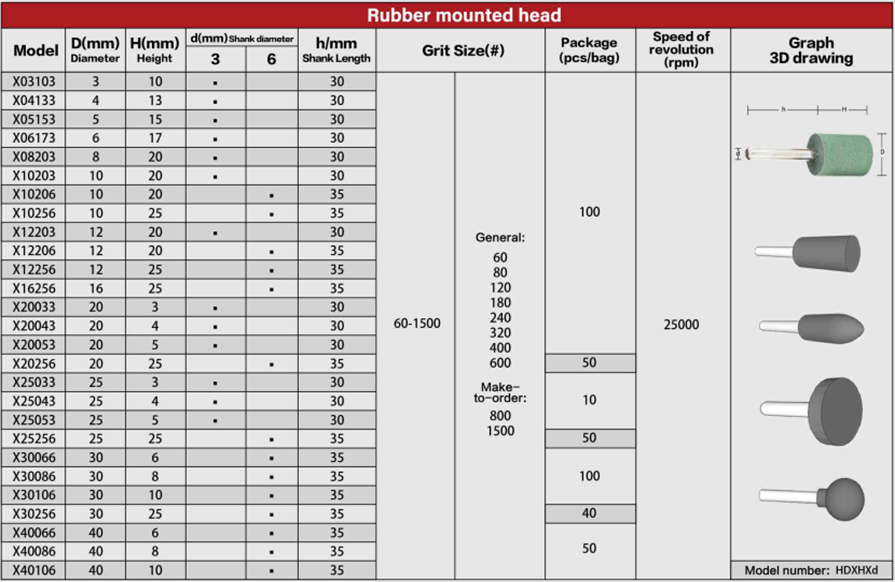

Table of Grinding Head X - T Shape (T)

Features of Grinding Head X - T Shape (T)

The most prominent features of this series of products are soft polishing and fine polishing.
Used for fine grinding and polishing, can make the workpiece surface to a higher level of surface finish such as mirror.
Widely used in precision polishing and deburring technology, edge seam grinding process.
Can cooperate with various high speed electric tools or pneumatic tools.

Grinding Head X - T Shape (T) Applicable Industries

Applications

Remove burn marks, scales, rust, scratches, dents and chuck marks of the resin mold cleaning treatment
As well as suitable for paint removal, electroplating and coating

Grinding Head X - T Shape (T) Applicable Industries

Recommendations for Use:

By adjusting the granularity of the rubber material, the processing scratches can be prevented.

Matching Tool Drives:

Angle grinders
Mini angle grinder

Safety Instructions OF Grinding Head X - T Shape (T)

How To Grinding Head X - T Shape (T)

Instructions:

Safety Instructions OF Grinding Head X - T Shape (T)

Please try to choose operation indoors environment and wear protective guards and goggles.
Never to exceed the recommanded maximum permitted rotational speed for safety reasons.
In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
