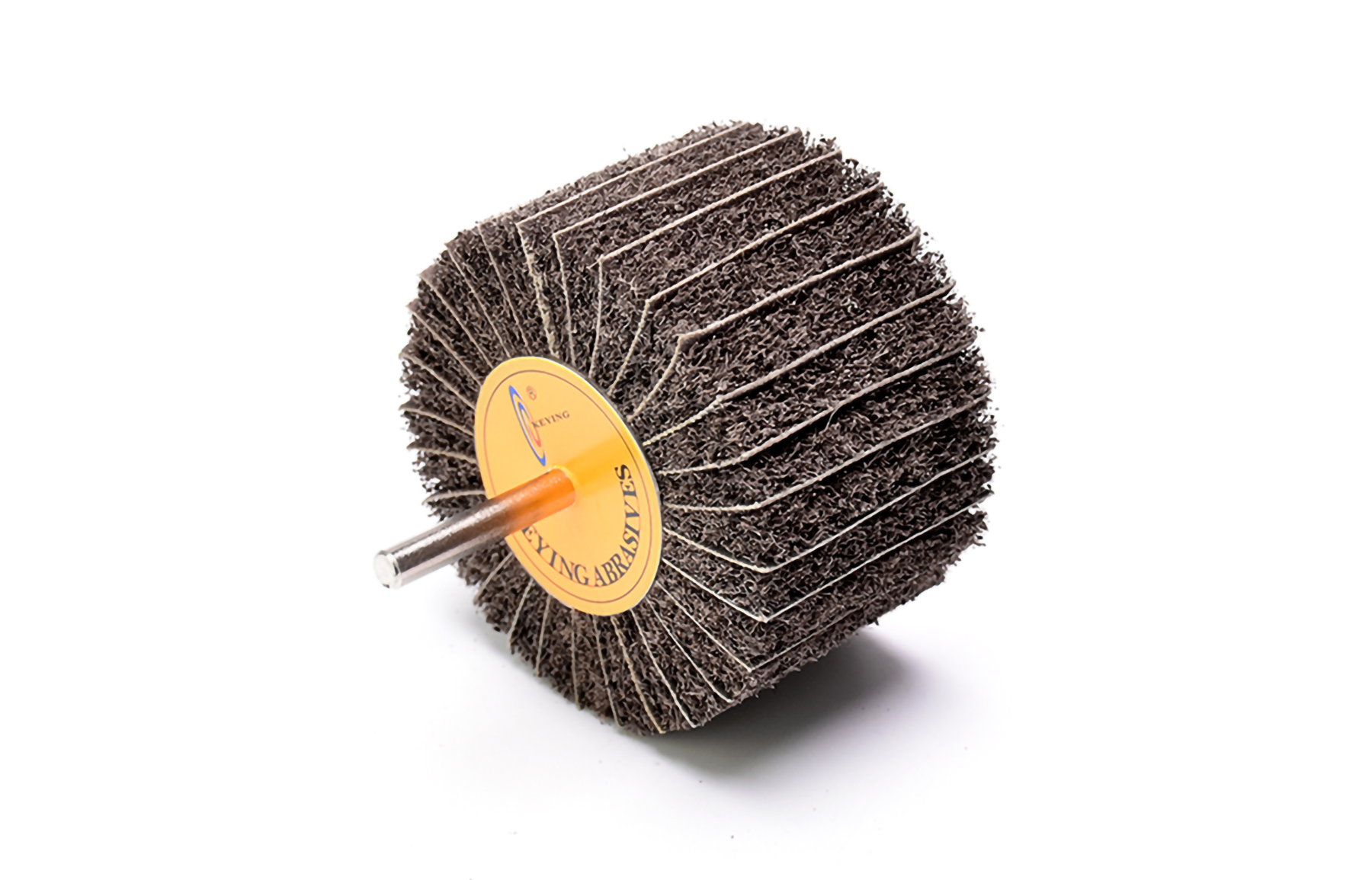

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC)

50 20 6 sc
80 50 6 sc

Silicon carbide is a kind of synthetic abrasive particle with a sharp edge, low toughness, and high hardness. Suitable for use in the aviation industry, especially silicon carbide is the only approved abrasive such as for engine parts. non woven flap wheel is often used to process hard alloy, titanium alloy, high-speed steel tools, and other hard grinding materials.

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Grit Size Table Corresponding To Raw Materials

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Grit Size Table Corresponding To Raw Materials


Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Non-woven Flap Wheel (with Abrasive) Size Table

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Non-woven Flap Wheel (with Abrasive) Size Table

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Specification:

  • Max. RPM:7000~19000 RPM

  • Other Raw Materials: Aluminum Oxide(AO)

  • Grit Size (Silicon Carbide): Medium-150#/180#, Fine-240#/320#


Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Materials that can be worked:

  • Aluminium

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Titanium alloys

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Zinc

  • Stainless steel (INOX)

  • Thermoplastics

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Applicable Industries

Applications

  • Roughening

  • Deburring

  • Surface work

  • Cleaning

  • Structuring (matt finishing, brush matting and satin finishing)

  • Fine grinding in multiple steps

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC) Applicable Industries

Safety Warning of Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC)

Instructions:

Safety Warning of Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC)


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
